DESCRIPTION
Stackable design for expanding multiple CAN channels, HAT+ standard support.

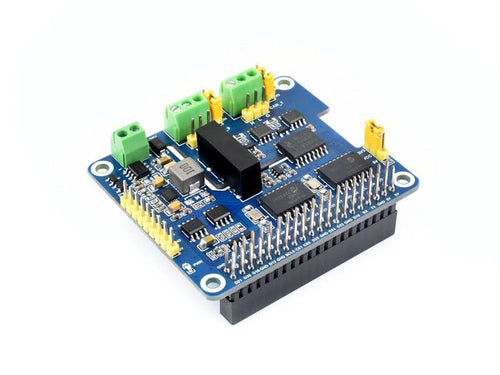

The 2-CH CAN HAT+ is a 2-Channel CAN bus expansion HAT designed for Raspberry Pi. Supports expanding multiple CAN channels by stacking with the 2-CH CAN HAT or 2-CH CAN FD HAT. Adopts HAT+ standard design, compatible with Raspberry Pi series boards such as Raspberry Pi 5/4/3/Zero. Onboard various protection circuits, including electrical isolation to make communication more safe and reliable. Supports wide range voltage input of 7~36V, suitable for industrial applications.
- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards / Jetson Nano
- Adopts MCP2515 and SN65HVD230 dual chips combined solution, allows 2-channel CAN communication
- Onboard unibody power supply isolation, providing stable isolated voltage, requires no extra power supply for the isolated terminal
- Onboard digital isolator, signal isolation makes the communication more safe and stable, and better anti-interference
- Onboard external power supply terminal, supports 7~36V wide voltage power input, supports powering the Pi and the HAT at the same time
- Onboard SM24CANB TVS (Transient Voltage Suppressor) diode, provides ESD protection and transient peak voltage protection
- Onboard voltage translator, select 3.3V/5V operating voltage by jumper
- Onboard 120Ī© terminal resistor, configured by jumper
- Breakout SPI and I2C control pins, for connecting with other host control boards
- Comes with online development resources and manual (examples in Python/C)
Ā
What can it do?
enable isolated and stable CAN bus capability for your Raspberry Pi
Ā
Designed for Raspberry Pi series
Standard Raspberry Pi 40PIN GPIO header, customized for Raspberry Pi series boards
Ā
2-Channel CAN capability
MCP2515 CAN controller + SN65HVD230 CAN transceiver
Ā
Electrical isolation circuitry safe & stable
SM24CANB TVS diode, ESD protection, transient spike voltage protection
Ā
Flexible and handy jumpers
easily select 3.3V / 5V operating voltage, or enable/disable 120Ī© terminal resistor, via onboard jumpers
Ā
Pinout definition
Ā
Outline dimensions
TECHNICAL DETAILS
- CAN controller: MCP2515
- Control bus: SPI
- Power supply method: External power supply terminal or Raspberry Pi GPIO
- Terminal voltage input: DC 7~36V
- operating voltage: 5V
- LOGIC LEVEL: 3.3V/5V
- Dimensions: 65.0 x 56.5mm
DOCUMENTS
SHIPPING LIST
- 1x 2-CH CAN HAT+
- 1x Screws pack
