8-Digit LED Segment Display Module MAX7219

DESCRIPTION

The 8-Digit LED Segment Display Module MAX7219 gives your Arduino, ESP32 or Raspberry Pi project eight bright red 7-segment digits driven entirely through the onboard MAX7219 chip, using just three GPIO pins. It's a popular choice among makers and students for building clocks, counters and instrumentation readouts without tying up dozens of pins on digit multiplexing.

The MAX7219 handles digit scanning, decoding and brightness control in hardware, so your microcontroller just streams data over a simple 3-wire serial interface.

FEATURES

• MAX7219 driver IC handles digit multiplexing and brightness in hardware, freeing up microcontroller cycles
• 8 red 7-segment digits, each with a decimal point, for clear numeric readouts
• 3-wire serial interface (DIN, CS, CLK) — SPI-compatible, needs only 3 GPIO pins
• Onboard DOUT pin allows multiple modules to be daisy-chained for longer digit runs
• 16 levels of software-adjustable brightness via the MAX7219 register set
• Compact 82mm x 15mm PCB with two 5-pin headers included (unsoldered)
• Wide library support (e.g. LedControl, MD_MAX72XX) for Arduino, ESP32 and Raspberry Pi

APPLICATIONS

• Digital clocks and countdown timers
• Sensor readout displays (temperature, humidity, voltage and more)
• Scoreboards and counters for competitions or games
• Frequency counters, RPM meters and other instrumentation displays
• IoT dashboards showing live numeric data
• Educational projects teaching serial communication and multiplexed displays

TECHNICAL DETAILS

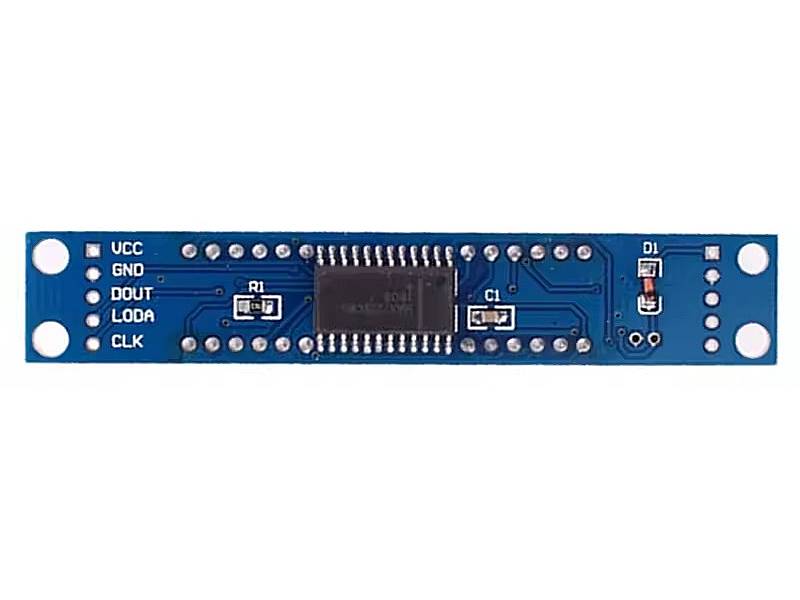

• Driver IC: MAX7219
• Digits: 8 x 7-segment (with decimal point)
• Digit Colour: Red
• Interface: 3-wire serial (DIN, CS, CLK), SPI-compatible
• Operating Voltage: 5V
• Cascadable: Yes, via DOUT pin
• Brightness Control: 16 levels, software adjustable

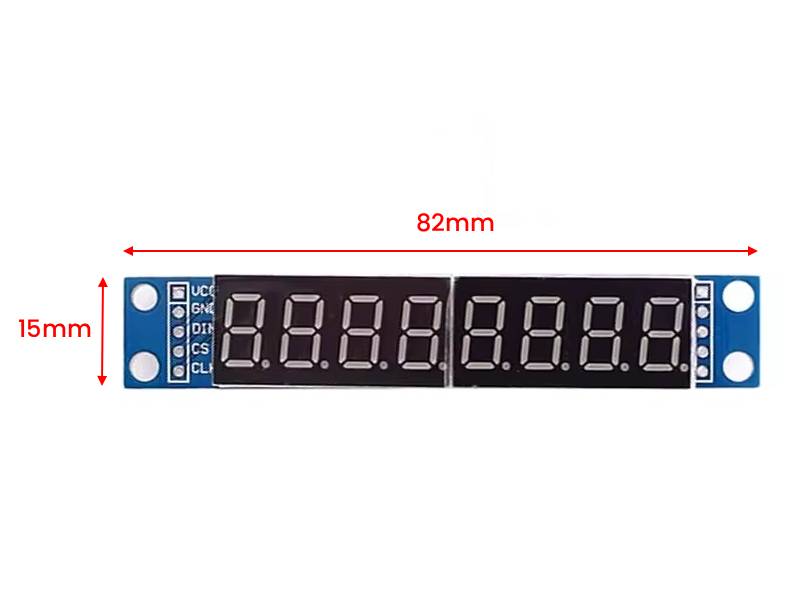

• Board Dimensions: 82mm x 15mm
• Pin Header: 2 x 5-pin (included, unsoldered)

SHIPPING LIST

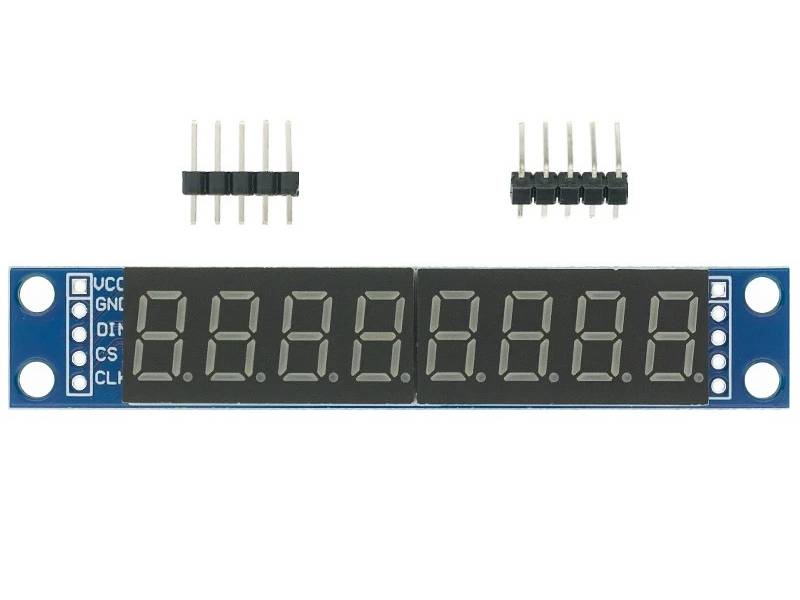

• 1x 8-Digit LED Segment Display Module MAX7219
• 2x 5-Pin Header (unsoldered)
