DESCRIPTION
The Cabinet LED Touch Switch Module is a compact, high-sensitivity electronic controller designed for seamless integration into modern cabinetry, wardrobes, and furniture lighting systems. Utilizing advanced capacitive touch sensing technology, this module allows for "invisible" installation behind wood, glass, or acrylic surfaces, turning any furniture piece into a smart-touch interface.

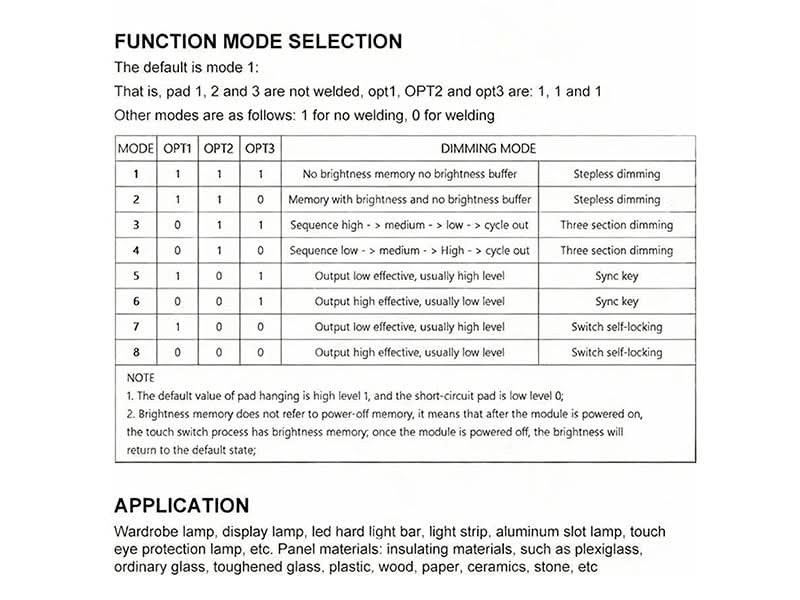

This versatile module typically supports three primary operational modes, depending on the specific integrated circuit (IC) configuration:
-
On/Off Toggle: A simple tap alternates between power states.
-
Stepless Dimming: A long press adjusts the brightness from 10% to 100%, featuring a memory function that retains the last brightness level.
-
3-Level Gradual Dimming: Cycles through Low, Medium, and High brightness settings with consecutive taps.
FEATURES
-
Capacitive Sensing Technology: Eliminates mechanical wear and tear, ensuring a lifespan of over 100,000 cycles.
-

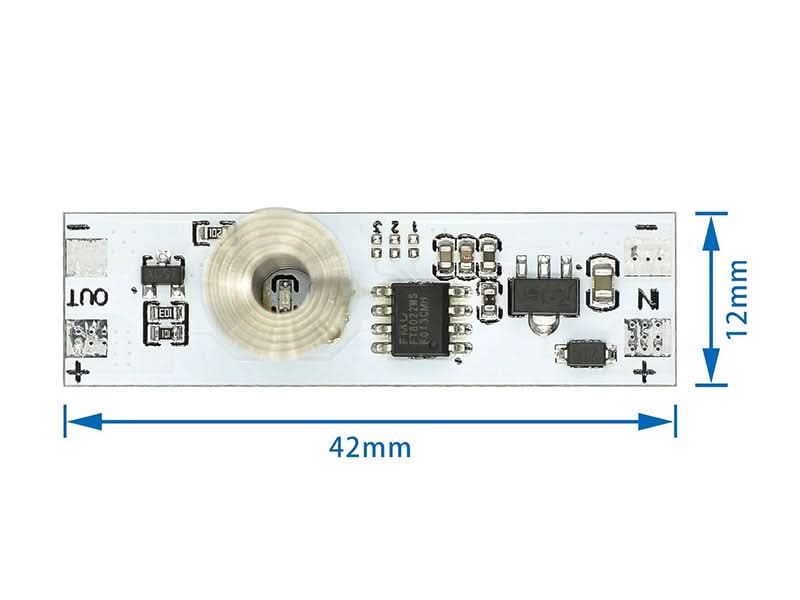

Ultra-Thin Form Factor: Designed for recessed mounting or surface-mount applications with a minimal footprint.
-
Constant Voltage Compatibility: Optimized for 12V and 24V LED Strips, ensuring flicker-free dimming and smooth transitions.
-
Self-Calibration: Smart algorithms automatically adjust to environmental interference and varying overlay thicknesses.
APPLICATIONS
-
Kitchen Cabinetry: Under-cabinet task lighting.
-
Closets & Wardrobes: Automatic lighting upon door opening or manual touch control.
-
Bathroom Mirrors: Backlit LED mirror touch sensors.
-
Retail Displays: Interactive shelf lighting for luxury goods.
TECHNICAL DETAILS
- Input Voltage: 5V - 24V DC (12V Recommended)
- Maximum Load: 3A, 72W
- Sensing Distance: 0mm (Direct Touch) to 3mm (Through Overlay)
- Working Frequency: 32kHz
- Standby Power: < 0.1W
- Operating Temp: -25°C to +85°C
SHIPPING LIST
- 1x Cabinet LED Touch Switch
