Charging Module IP5310 Type-C with Boost

DESCRIPTION

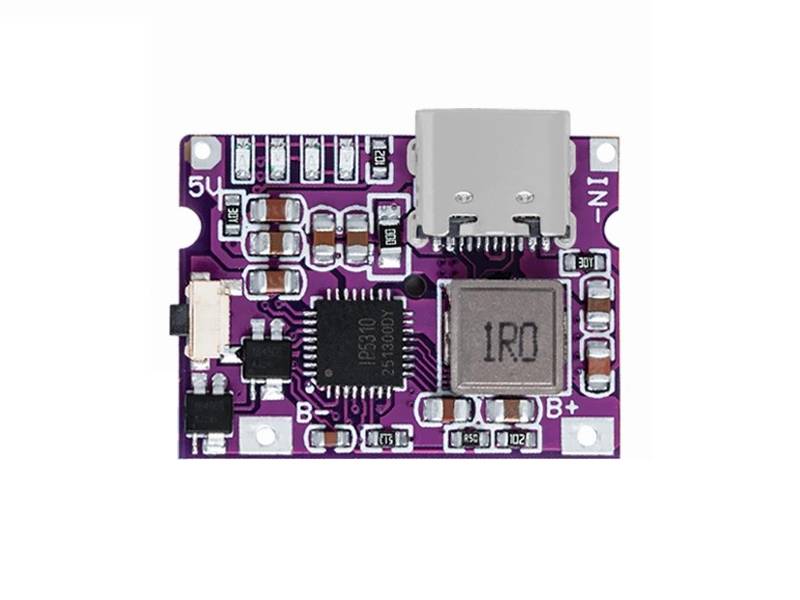

The IP5310 Type-C Charging Module is a compact lithium battery charge-and-boost board that lets makers build their own power bank or portable 5V supply. It accepts USB Type-C input for charging a single-cell Li-ion/LiPo battery, then boosts the battery voltage to a stable 5V output for downstream electronics.

Onboard LED indicators and a side push-button switch make charge status and boost activation simple to monitor and control, all in a footprint of just 2.5cm x 1.9cm.

FEATURES

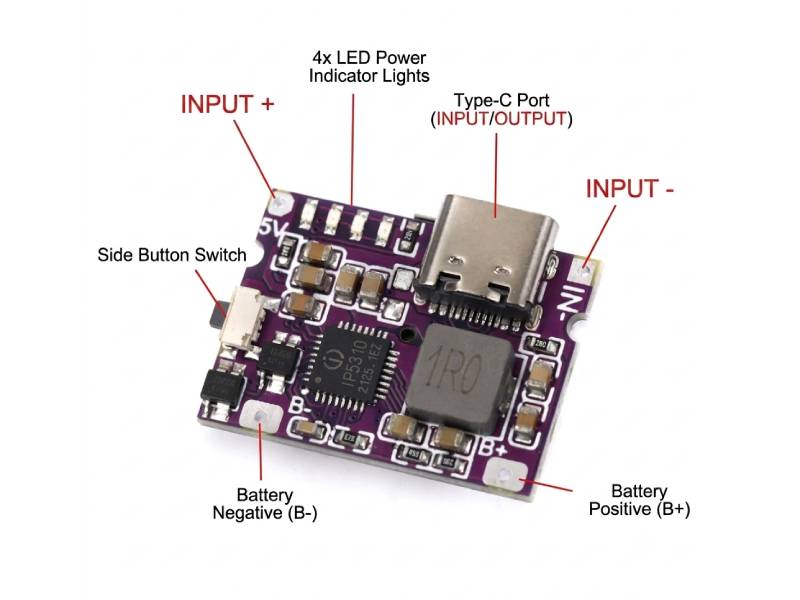

• IP5310 charge/boost management IC in a compact 2.5cm x 1.9cm footprint
• USB Type-C port supports both battery charging input and 5V boosted output
• 4x onboard LED indicators display charging and battery status at a glance
• Side push-button switch to activate boost output on demand
• Dedicated B+/B- pads for direct single-cell Li-ion/LiPo battery connection
• Integrated boost inductor and protection circuitry for stable 5V delivery

APPLICATIONS

• DIY power bank builds for Arduino, Raspberry Pi, and other maker projects
• Portable USB Type-C charging solutions for battery-powered devices
• Wearable and small IoT projects needing compact battery management
• Backup power modules for handheld electronics and prototypes

TECHNICAL DETAILS

• Charge/Boost IC: IP5310
• Input: USB Type-C (5V, charging and pass-through)
• Output: 5V boosted (via Type-C port)
• Battery Type: Single-cell Li-ion/LiPo (connect via B+/B-)

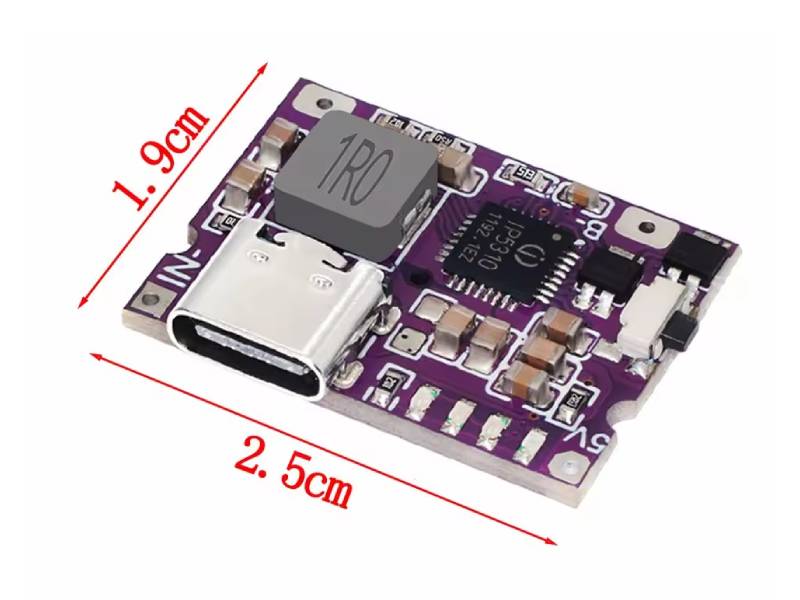

• Board Dimensions: 2.5cm x 1.9cm
• Indicators: 4x LED charge/status lights
• Control: Side push-button switch

SHIPPING LIST

• 1x Charging Module IP5310 Type-C with Boost
