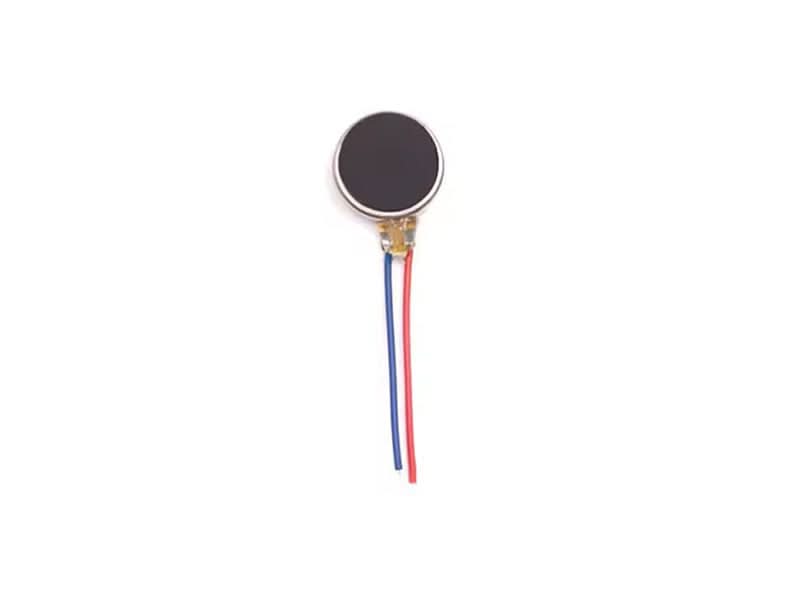

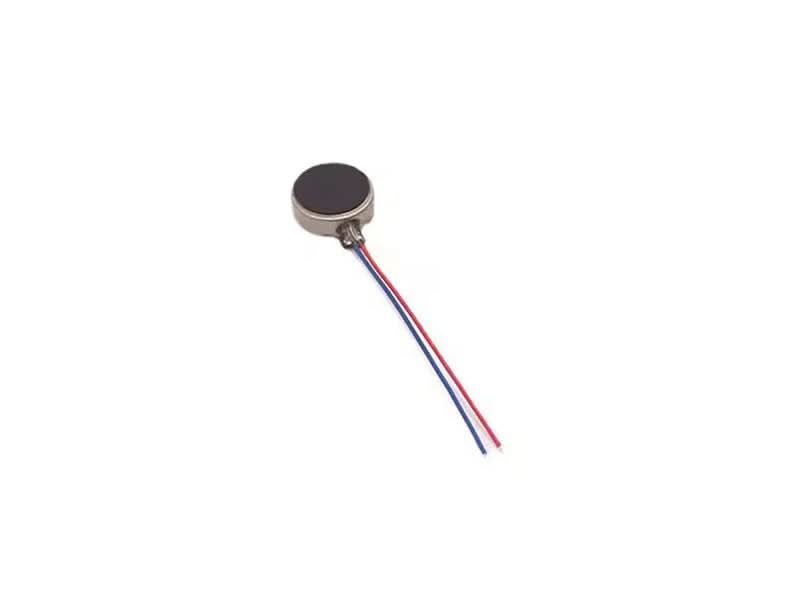

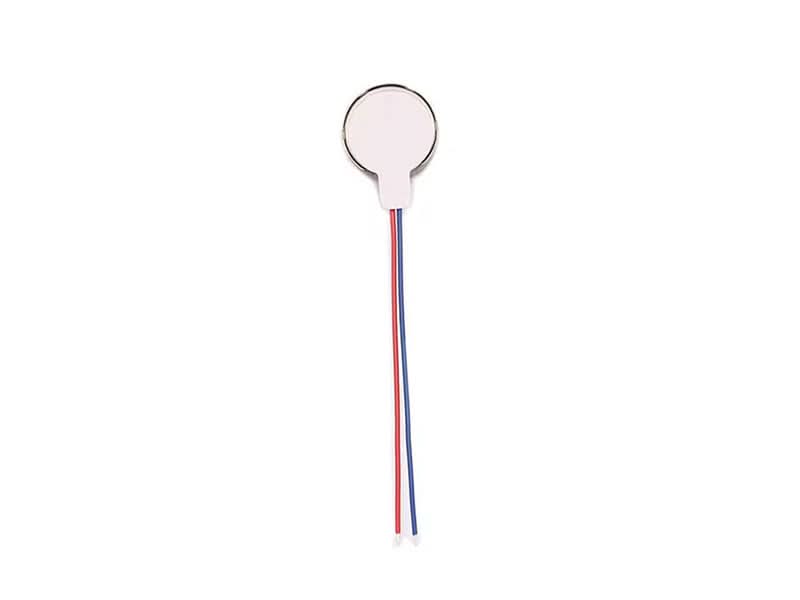

Coin Vibration Motor 1027

DESCRIPTION

The Coin Vibration Motor 1027 is a compact, high-performance Eccentric Rotating Mass (ERM) vibration motor engineered for precision haptic feedback and vibration alert applications. Also known as a shaftless or pancake vibrator motor, the 1027 measures 10mm in diameter by 2.7mm in thickness and operates at a rated speed of 11,000 RPM at 3V DC.

Designed for space-constrained electronics, this ultra-slim coin motor delivers reliable tactile feedback without requiring an external shaft or exposed moving parts, making it ideal for integration into sealed and miniaturised assemblies.

TECHNICAL DETAILS

• Operating Voltage Range: 1.5V – 4.0V DC
• Rated Voltage: 3.0V DC
• Rated Speed: 11,000 RPM (at 3V)
• Vibrational Force: ~0.7G – 1.10G
• Motor Type: ERM (Eccentric Rotating Mass), Brush Type
• Operating Temperature: -20°C to +60°C
• Storage Temperature: -30°C to +70°C
• Dimensions: 10mm (diameter) x 2.7mm (thickness)

SHIPPING LIST

• 1x Coin Vibration Motor 1027
