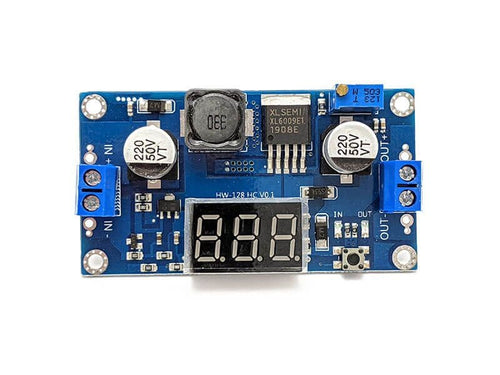

DC-DC Step Up Boost Converter with Display 3.5 - 32V to 5 - 35V 10W 3A XL6009

DESCRIPTION

This XL6009 Adjustable boost convert is handy and beginner friendly as it allows you to step up or boost the voltage when you are in need of power supply.

Comes with 3 digits 7-segment display to show the Vin or Vout (configurable via push button), you do not need a multimeter to measure the input or output voltage.With the built-in multiturn (high precision) potentiometer/variable resistor/adjustable resistor, you can easily adjust the output voltage (step up) with a flat screw driver.

Please note that a minimum of 4V is required to power on the display.

REVERSE POLARITY WILL FRY THE BOARD IMMEDIATELY. PLEASE TAKE CAUTION TO MAKE SURE POLARITY IS CORRECT.

TECHNICAL DETAILS

• Boost Converter Switching Power Module
• Adjustable output voltage: 5V to 35V
• Wide range input voltage: 3.5V to 32V
• Step up converter, Vout > (Vin + 1V)
• Comes with 3-digit 7 segment display, to show Vin or Vout
• A Push Button to configure the 7 segment display
• Maximum output current: Peak 3A, Continuous 2A
• Output voltage ripple: 30mV
• Switching frequency: 400KHz
• Rated Power: 20W
• Operating temperature: -45°C to +85°C

SHIPPING LIST

• 1x DC-DC Step Up Boost Converter with Display 3.5 - 32V to 5 - 35V 10W (3A) XL6009
