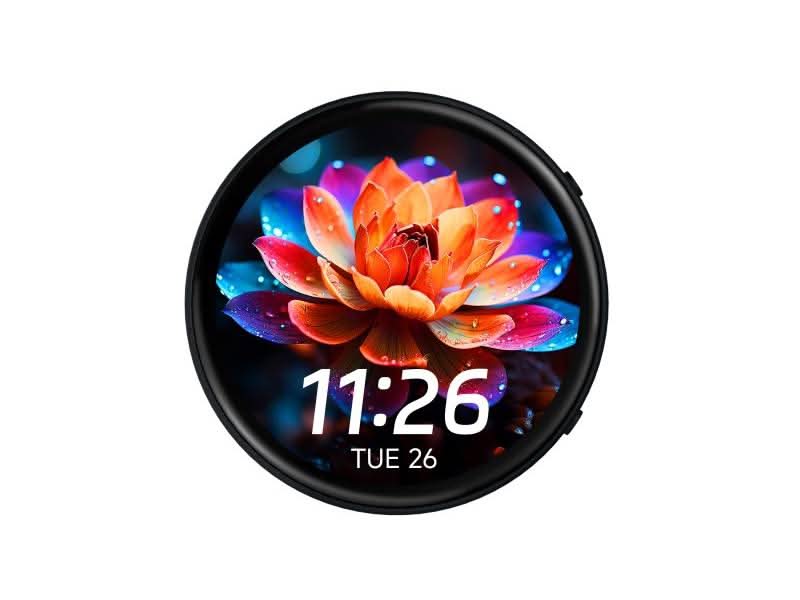

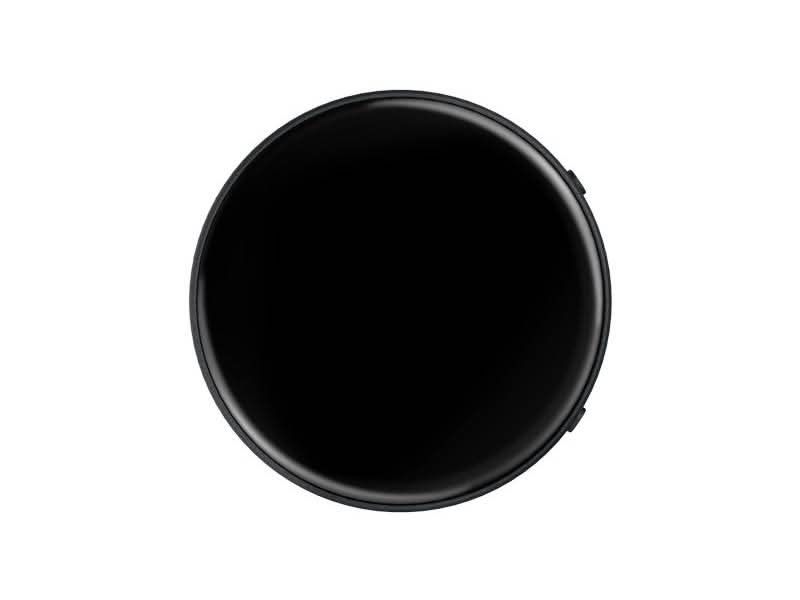

ESP32-S3 1.75inch AMOLED Round Touch Display Development Board, 32-bit LX7 Dual-core Processor, 466×466 Pixels, QSPI Interface, Onboard Dual Microphones Array, ESP32 With Display with Case

DESCRIPTION

The ESP32-S3-Touch-AMOLED-1.75 is a high-performance, highly integrated MCU board designed by Waveshare. It is compact in size, onboard 1.75inch AMOLED capacitive touch display, power management IC, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), RTC chip, low power audio codec, echo cancellation circuit, and so on, which makes it easy for you to develop and integrate into the products quickly.

ESP32-S3-Touch-AMOLED-1.75
Embedded with CO5300 Display Driver and CST9217 Capacitive Touch Chip.

FEATURES

• Equipped with ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
• Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
• Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory
• Type-C connector, improving device compatibility, easier to use
• Onboard 1.75inch AMOLED capacitive touch display for clear color picture display, 466 × 466 resolution, 16.7M color
• Built-in CO5300 display driver and CST9217 capacitive touch chip, using QSPI and I2C communication respectively, effectively saving the IO resources
• Equipped with dual microphones array for audio algorithms such as noise reduction and echo cancellation, suitable for accurate speech recognition and near-field / far-field voice wake-up applications
• Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc.
• Onboard PCF85063 RTC chip, powered by Lithium battery through AXP2101 chip for uninterrupted power supply
• Onboard PWR and BOOT programmable buttons for easy custom function development
• Onboard 3.7V MX1.25 Lithium battery recharge/discharge header
• Onboard 8PIN 2.54mm header adapting 3 × GPIO and 1 × UART, and reserved pads of I2C and 3 × expanded IO interfaces, for connecting peripherals and debugging
• Onboard TF card slot for extended storage and fast data transfer, suitable for applications such as data recording and media playback, simplifying circuit design
• Adopts AXP2101 IC for efficient power management, supports multiple voltage outputs, battery charging, battery management, and battery life optimization, etc.
• Adopts AMOLED screen, featuring advantages of high contrast, wide viewing angle, rich colors, fast response, thinner design, and low power consumption, etc.

SMALL SIZE, TOUCH MORE POSSIBILITIES

Suitable For Various Smart Device Development, and Can Realize Human-Computer Interaction Function. Supports connecting to a battery for independent operation.

ADOPTS AMOLED SCREEN

The next-generation display technology, compared to traditional LCD displays, the AMOLED screen features precise light-control capability, representing more delicate colors, more picture details, and more vivid videos and images.

178° WIDE VIEWING ANGLE

Excellent Display Performance, 16.7M color, wide viewing angle.

ONBOARD AUDIO CODEC

Supports high-quality audio processing, providing clear and high-quality audio input and output.

SUPPORTS AI SPEECH INTERACTION

Allows access to online large model platforms such as DeepSeek, Doubao, etc.

SUPPORTS ESP-IDF, ARDUINO

Comprehensive SDK, dev resources, tutorials to help you easily get started.

WI-FI AND BLE 5 SUPPORT

ESP32-S3 integrates 2.4 GHz Wi-Fi (802.11 ax/b/g/n) with 40 MHz of bandwidth support, Its Bluetooth Low Energy subsystem supports Bluetooth 5 (LE) and Bluetooth Mesh.

WHAT'S ON BOARD

1. ESP32-S3R8
   The SoC with WiFi and Bluetooth, up to 240MHz operating frequency, with onboard 8MB PSRAM

2. Onboard antenna
   Supports 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE)

3. IPEX1 connector
   Switching to use the external antenna via resoldering an onboard resistor

4. PWM button
   for system power supply ON/OFF, supports custom function

5. BOOT button
   for device startup and function debugging

6. MX1.25 2P speaker header

7. TCA9554
   GPIO expander chip

8. PCF85063
   RTC chip

9. QMI8658
   6-axis IMU includes a 3-axis gyroscope and a 3-axis accelerometer

10. AXP2101
    Highly integrated power management IC

11. 2.54mm 8PIN header
    for debugging and connecting peripherals

12. Dual microphones
    with onboard echo cancellation circuit, enabling higher-quality audio capture

13. IPEX 1 GPS connector
    for connecting GPS antenna (for the GPS version only, with built-in LC76G module)

14. Type-C port
    ESP32-S3 USB interface, for program burning and log printing

15. ES7210
    Echo cancellation algorithm chip, for reducing echo and enhancing audio capture accuracy

16. MX1.25 Lithium battery header
    MX1.25 2P connector, for 3.7V Lithium battery, supports charging and discharging

17. TF card slot

OUTLINE DIMENSIONS

TECHNICAL DETAILS

• Display Panel: AMOLED
• Display Size: 1.75inch
• Resolution: 466 × 466 pixels
• Display Colors: 16.7M
• Brightness: 700 cd/㎡
• Contrast Ratio: 100000 : 1
• Communication Interface: QSPI
• Driver IC: CO5300
• Touch: Supported
• Touch IC: CST9217

DOCUMENTS

• Wiki: docs.waveshare.com/ESP32-S3-Touch-AMOLED-1.75

SHIPPING LIST

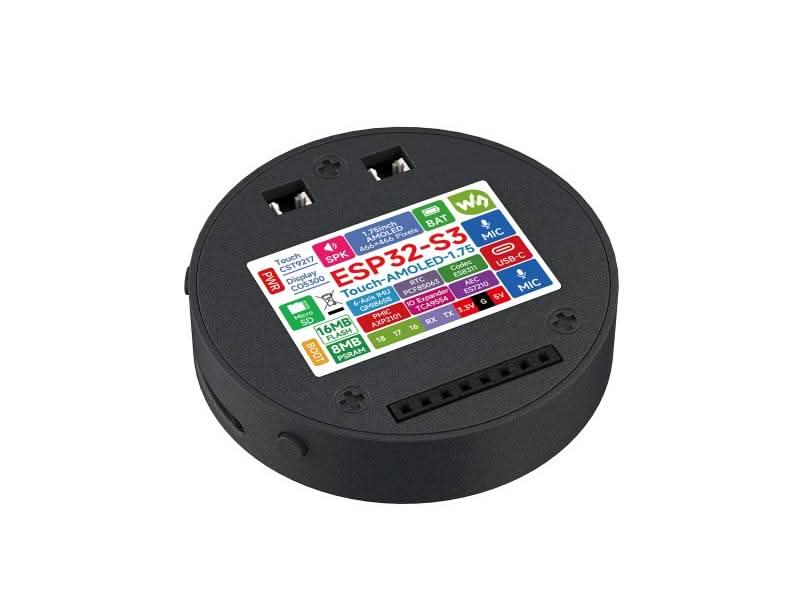

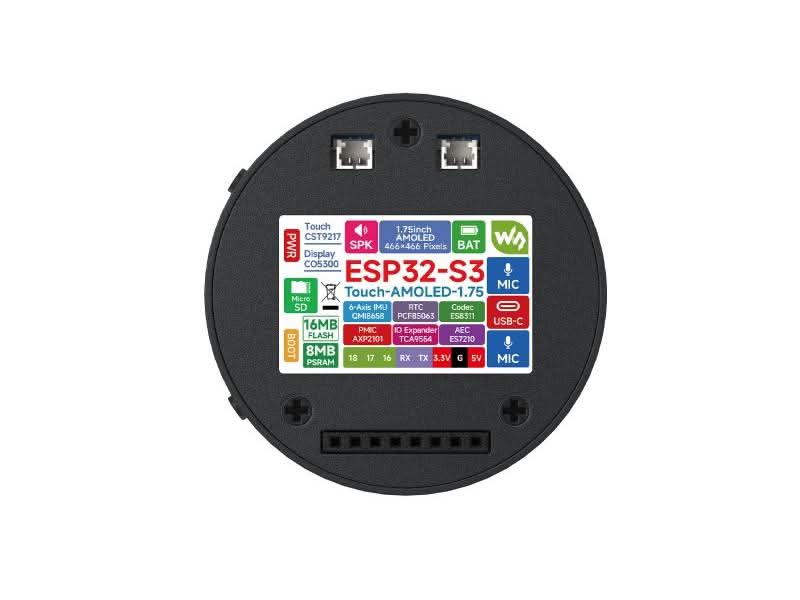

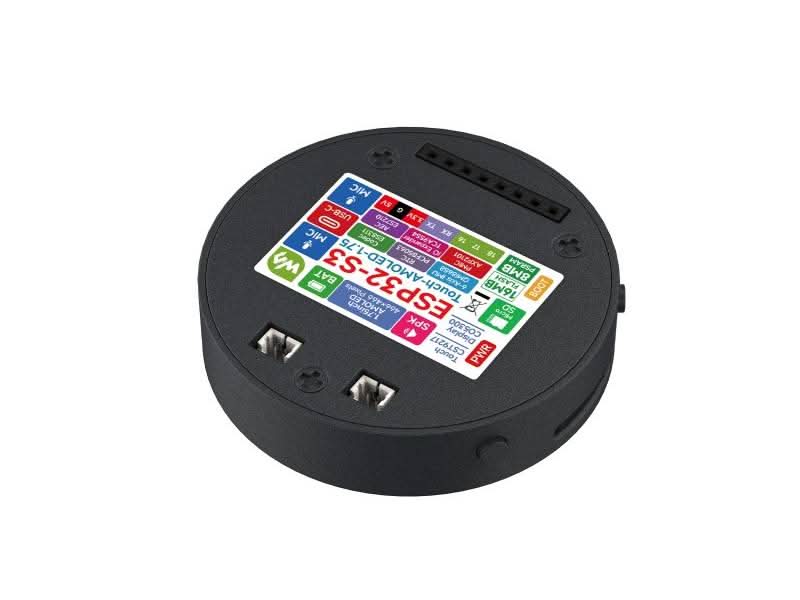

• 1x ESP32-S3-Touch-AMOLED-1.75 with case
• 1x 8Ω 2W speaker
