ESP32-S3 ETH Development Board, 10/100Mbps RJ45 Ethernet port, Wi-Fi & Bluetooth Support, 240MHz Dual Core Processor, ESP32 Ethernet Development Board

DESCRIPTION

This is an ETH development board based on ESP32-S3R8, supports Wi-Fi and Bluetooth wireless communication, with reliable and efficient wired Ethernet connectivity, optional for PoE function. Onboard camera interface, supports OV5640 and other mainstream cameras for image and video capture. Compatible with Pico header, it can be used with some Raspberry Pi Pico HATs. Relying on the rich ecology and open source resources of ESP32, users can get started quickly for secondary development. It is suitable for Internet of Things, image acquisition, smart home and other AI projects.

ESP32-S3 ETH DEVELOPMENT BOARD

Supports Wi-Fi, Bluetooth, and Ethernet communication, Optional For PoE Function
Onboard TF card slot, camera interface and Pico-compatible header

FEATURES

• Adopts ESP32-S3R8 high-performance chip with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz
• Integrated 512KB SRAM, 384KB ROM, 8MB PSRAM and 16MB Flash memory
• Integrated 2.4GHz Wi-Fi and Bluetooth 5 (LE) wireless communication, with an onboard antenna. Supports switching to use external antenna
• Onboard W5500 Ethernet chip for extending 10/100Mbps network port through SPI interface
• Optional for PoE module to realize Power over Ethernet function (IEEE 802.3af-compliant)
• Onboard camera interface, supports OV5640 and other mainstream cameras for image and video capture
• Onboard USB Type-C port for power supply, program downloading, and debugging, more convenient for development use
• Onboard TF card slot for external TF card storage of pictures or files
• Compatible with Pico header, onboard multiple peripheral interfaces, offering strong compatibility and expandability

ESP32-S3 Designed for AIoT applications

Powered by Xtensa 32-bit LX7 dual-core processor with frequency up to 240 MHz
Powerful AI Computing Capability & Reliable security features

WIFI AND BLE 5 SUPPORT

ESP32-S3 integrates 2.4 GHz Wi-Fi (802.11 b/g/n) with 40 MHz of bandwidth support
Its Bluetooth Low Energy subsystem supports Bluetooth 5 (LE) and Bluetooth Mesh

EASIER TO DEVELOP

Integrates TF card slot, camera interface and Ethernet port

TF card slot	Camera interface	Ethernet port

TWO POWER SUPPLY METHODS

Supports both PoE and USB Type-C power supply

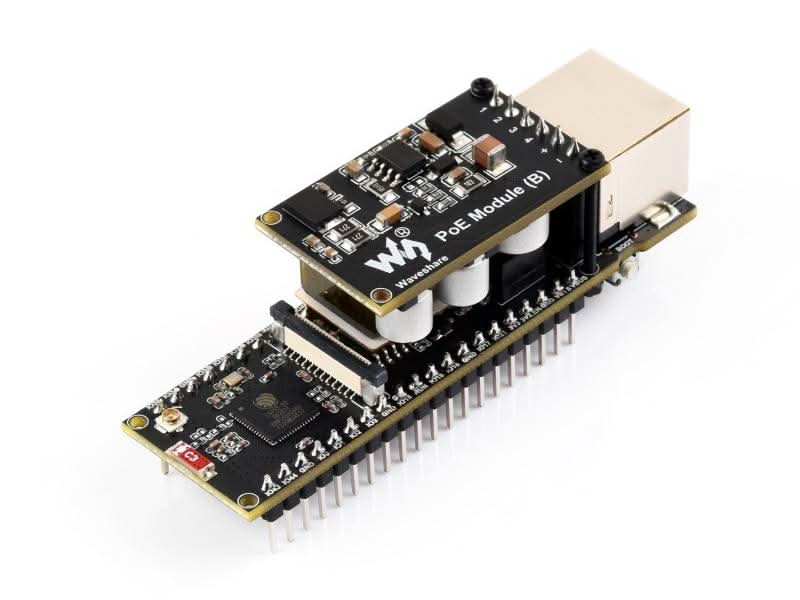

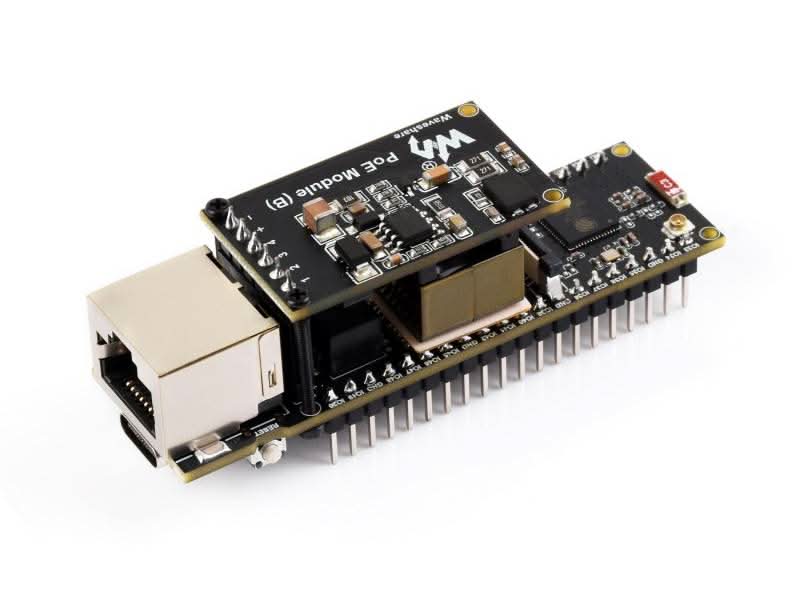

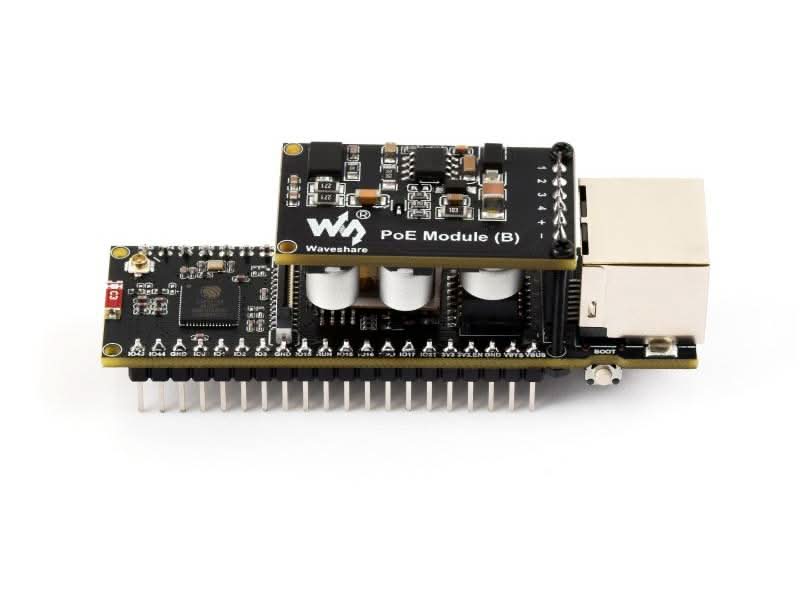

POE MODULE, SUPPORTS POE POWER SUPPLY

Provides Both Network Connection And Power Supply In Only One Ethernet Cable

* switch in the picture above is NOT included.

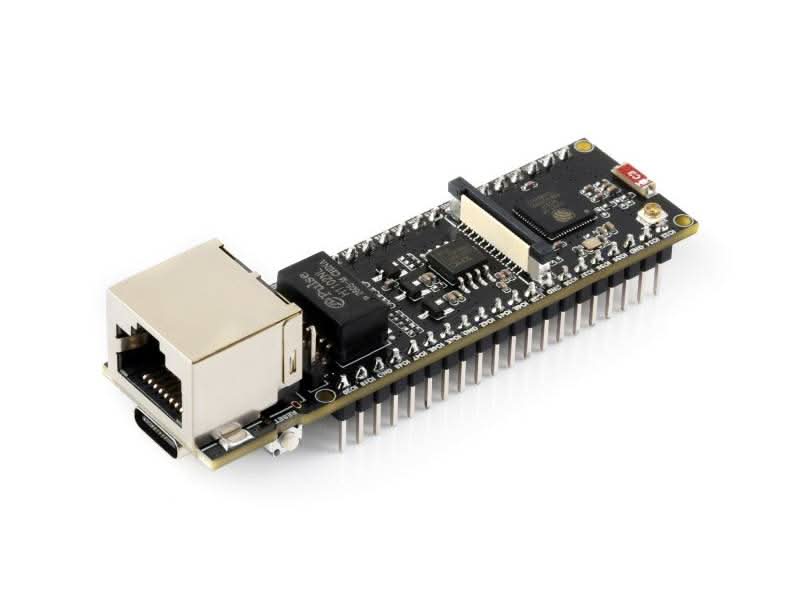

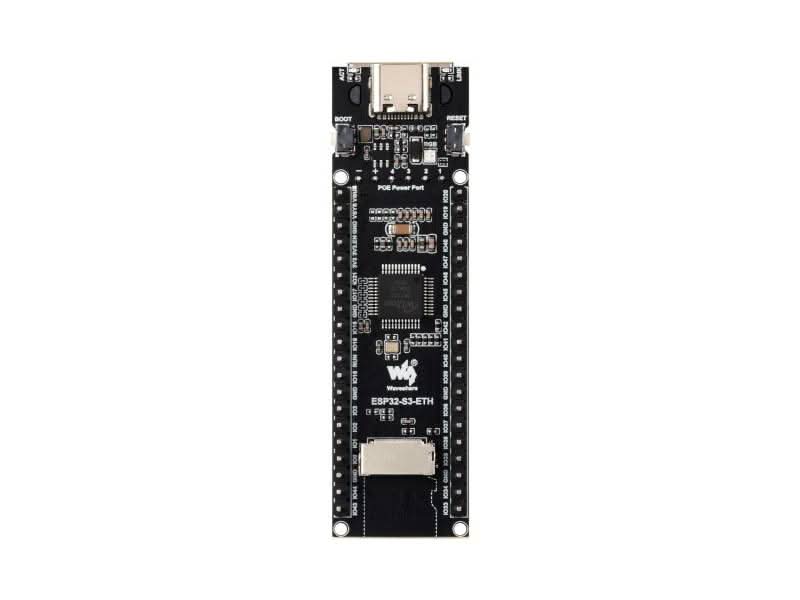

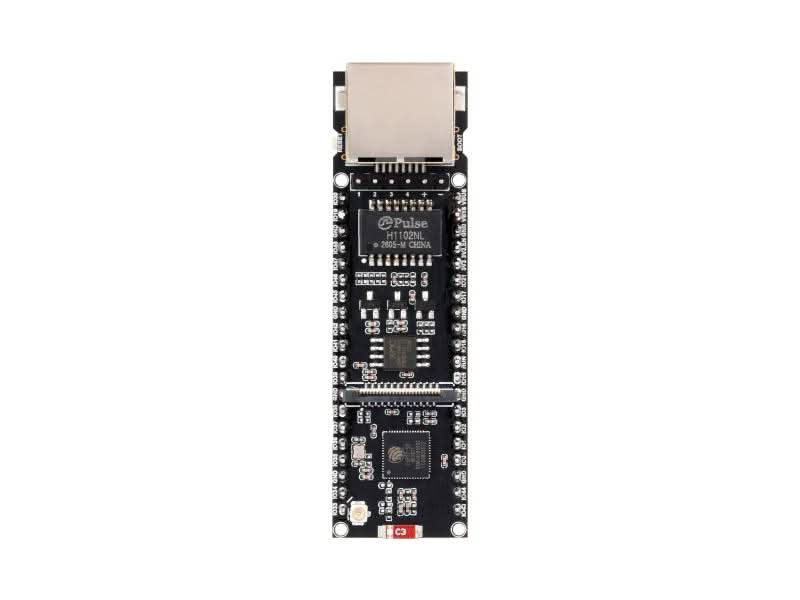

WHAT'S ON BOARD

1. ESP32-S3R8
   Xtensa 32-bit LX7 dual-core processor, up to 240MHz operating frequency
2. W25Q128
   16MB Flash memory for program and data storage
3. W5500
   Ethernet chip
4. H1102NLT
   Ethernet transformer
5. JW5060
   Voltage regulator
6. USB Type-C port
   for power supply and program burning
7. RJ45 Ethernet port
   10/100M auto-negotiation Ethernet port
8. PoE module header
   for connecting PoE module
9. Camera interface
   Compatible with OV5640 and other mainstream cameras
10. IPEX 1 antenna connector
    Reserved connector, enabled via resoldering an onboard resistor
11. Ceramic antenna
    used by default
12. TF card slot
13. BOOT button
14. ACT indicator
15. LINK indicator
16. RESET button

INTERFACES DEFINITION

Compatible with Pico header, can be used with some Raspberry Pi Pico HATs, offering strong compatibility and expandability

OUTLINE DIMENSIONS

RESOURCES

• Wiki: www.waveshare.com/wiki/ESP32-S3-ETH

SHIPPING LIST

• 1x ESP32-S3-ETH with pre-soldered headers

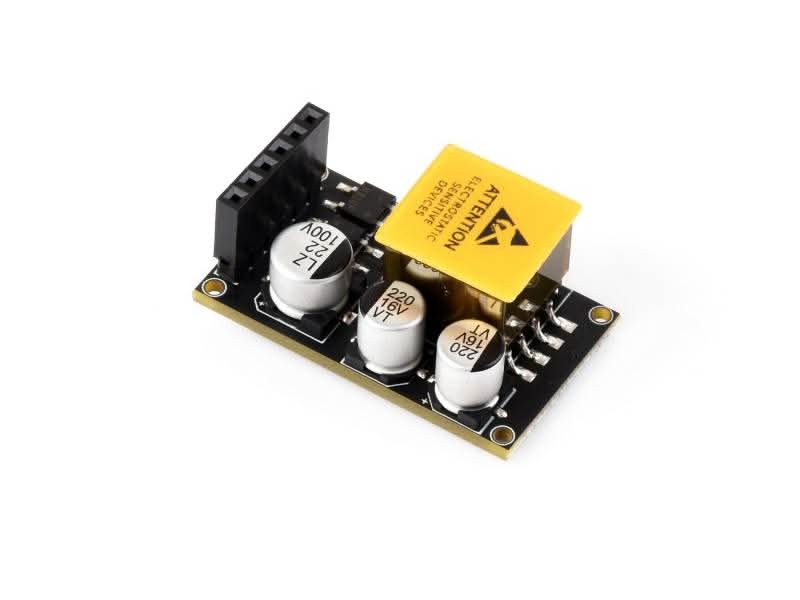

• 1x PoE module
• 2x Round-Head Screw + Nut
