DESCRIPTION

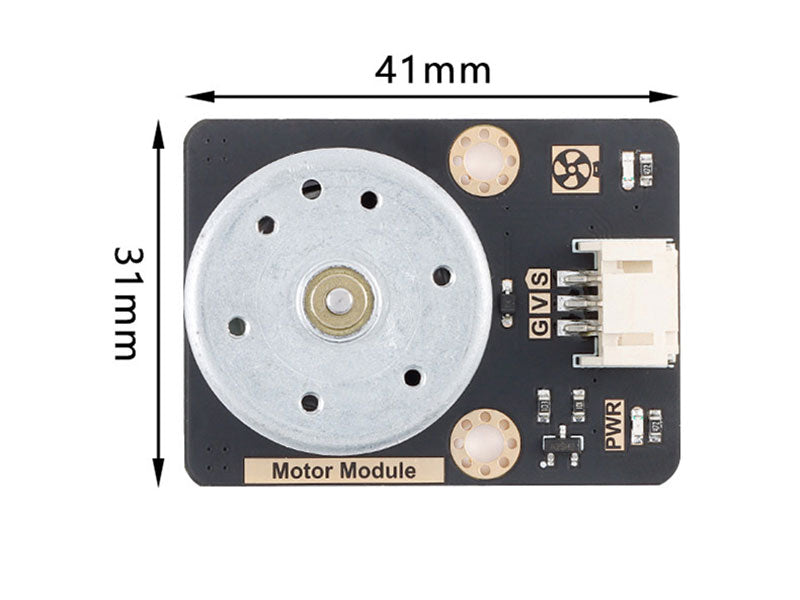

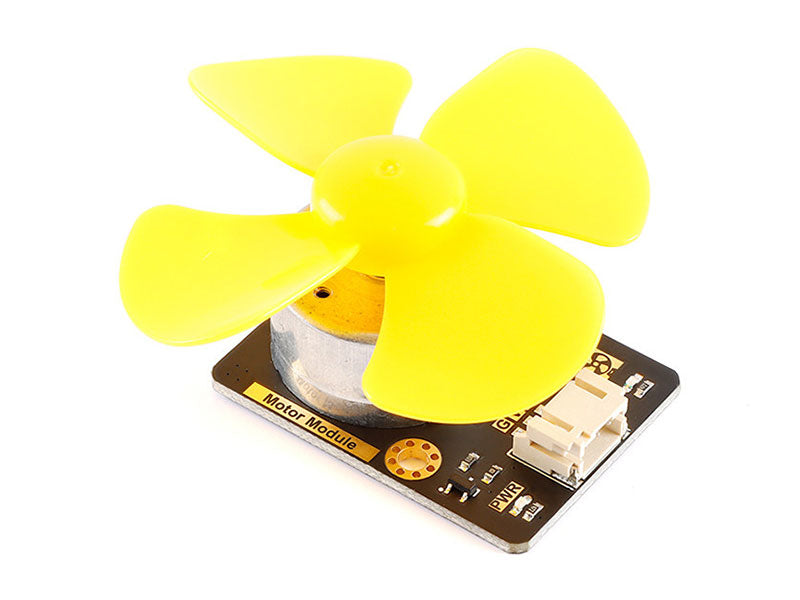

The Fan Module with Driver integrates a small DC fan with a built-in driver circuit, enabling direct control from microcontrollers without requiring external transistors or MOSFETs. Ideal for cooling, ventilation, and airflow management in IoT and robotics projects, it simplifies integration into Arduino and Raspberry Pi systems. The onboard driver handles the motor current, protecting the microcontroller's GPIO pins from overcurrent damage.
The module supports digital on/off control and PWM-based speed regulation, and connects via a PH2.0 cable for clean wiring.
FEATURES
- Integrated driver circuit for direct microcontroller control
- Supports digital on/off and PWM speed control
- Operating voltage: 3.3V - 5V
- PH2.0 connector for clean, secure wiring
- Protects GPIO pins from motor driver overcurrent
- Compact design suitable for use inside enclosures

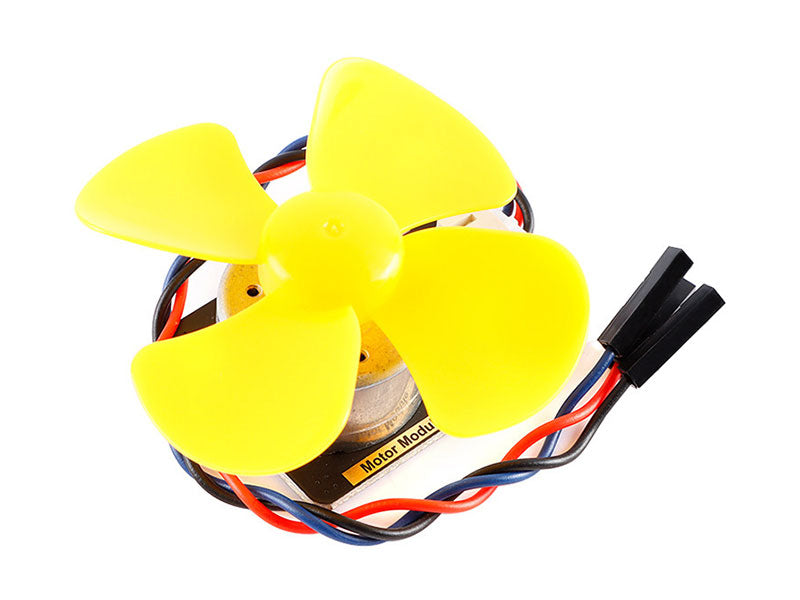

- Includes PH2.0 cable in the box
APPLICATIONS
- Active cooling for electronics enclosures and cases
- Ventilation and airflow management in IoT systems
- Temperature-controlled fan projects with Arduino
- Robotics and automation cooling systems
- STEM and educational maker projects
TECHNICAL DETAILS
- Operating Voltage: 3.3V - 5V
- Control Interface: Digital GPIO / PWM
- Connector: PH2.0
- Fan Speed: 3500RPM
SHIPPING LIST
- 1x Fan Module with Driver
- 1x PH2.0 Cable
