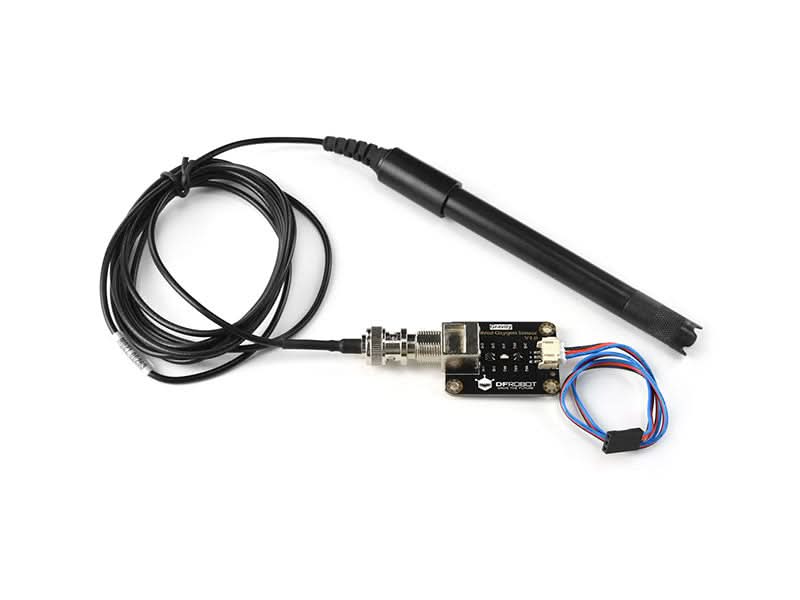

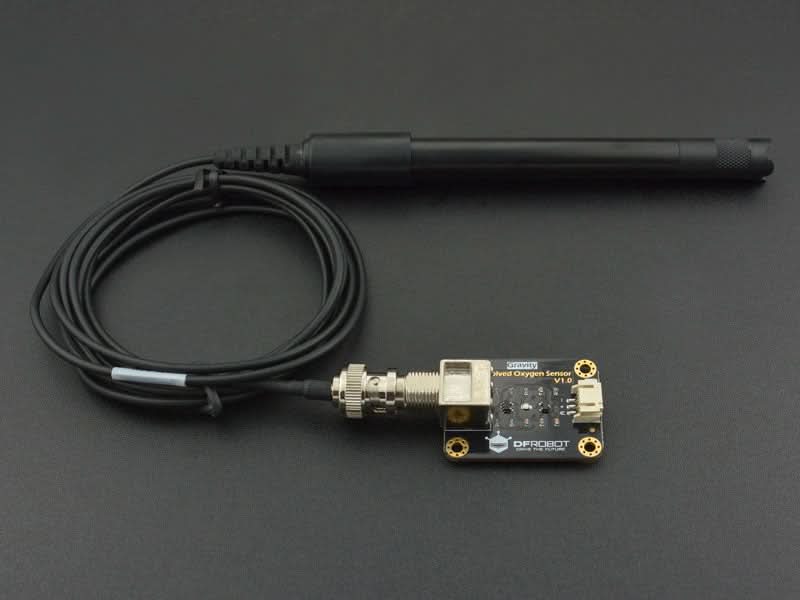

DESCRIPTION
This is a dissolved oxygen sensor kit. A dissolved oxygen meter is used to measure the dissolved oxygen in water, to reflect the water quality. It is widely applied in many water quality applications, such as aquaculture, environment monitoring, natural science, etc.
There’s an old saying regarding keeping fish, “Good fish deserves good water”. Good water quality is very important to aquatic organisms. Dissolved oxygen is one of the important parameters to reflect water quality. Low dissolved oxygen in the water will lead to difficulty in breathing for aquatic organisms, which may threaten their lives.
The probe is galvanic, does not need polarization time, and stays available at any time. The filling solution and membrane cap are replaceable, leading to the low maintenance cost. The signal converter board is plug-and-play and works from 3.3V - 5V which makes it compatible with most popular microcontrollers such as ESP32, Raspberry Pi and Arduino.
Arduino Dissolved Oxygen (DO) Sensor Connection Diagram
Due to the International Import and Export Policy, the corrosive solution (acid & alkaline solution) cannot be delivered by air transportation. The filling solution is not included in the kit. You have to purchase it from the local shop or deploy the solution by yourself, refer to WiKi FAQ-Q4. It can’t work without a filling solution! Please be cautious with the purchase!
Note:
- The filling solution is 0.5 mol/L NaOH solution. You need to pour it into the membrane cap before use. Please be cautious with the operation because the solution is corrosive. Please wear gloves! If the solution accidentally drops onto the skin, wash your skin with plenty of water immediately.
- The oxygen permeable membrane in the membrane cap is sensitive and fragile. Be cautious when handling it. Fingernail and other sharp objects should be avoided.
- The DO sensor will consume a little oxygen during the measurement. Please gently stir the solution and let the oxygen be distributed evenly in the water.
FEATURES
Dissolved Oxygen Probe:
- Galvanic probe, no need polarization time
- Filling solution and membrane cap is replaceable, low maintenance cost
Signal Converter Board:
- 3.3~5.5V wide-range power supply, compatible with most Arduino microcontroller
- 0~3.0V analog output, compatible with all microcontrollers with ADC function.
- Gravity interface, plug, and play, easy to use
TECHNICAL DETAILS

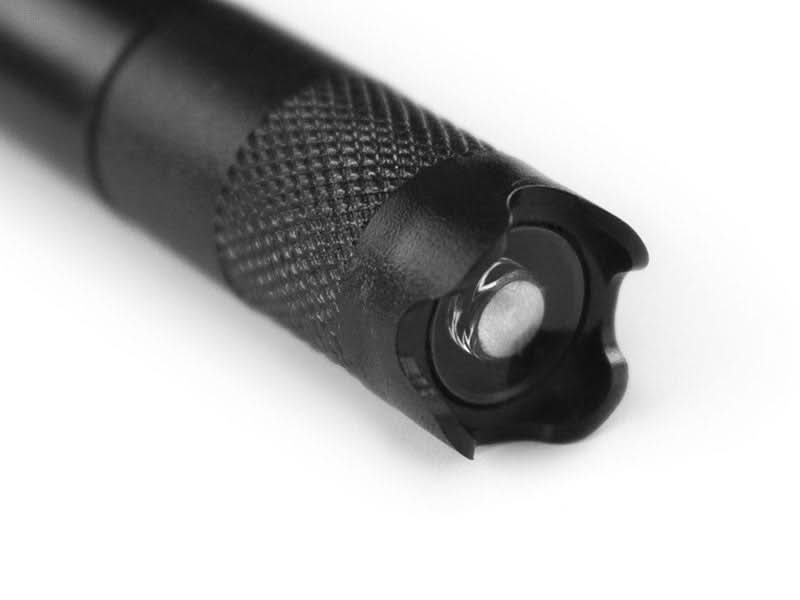

Dissolved Oxygen Probe
- Type: Galvanic Probe
- Detection Range: 0~20mg/L
- Response Time: Up to 98% full response, within 90 seconds (25℃)
- Pressure Range: 0~50PSI
- Electrode Service Life: 1 year (normal use)
- Maintenance Period: Membrane Cap Replacement Period: 1~2 months (in muddy water); 4~5 months (in clean water) Filling Solution Replacement Period: Once every month
- Cable Length: 2 meters

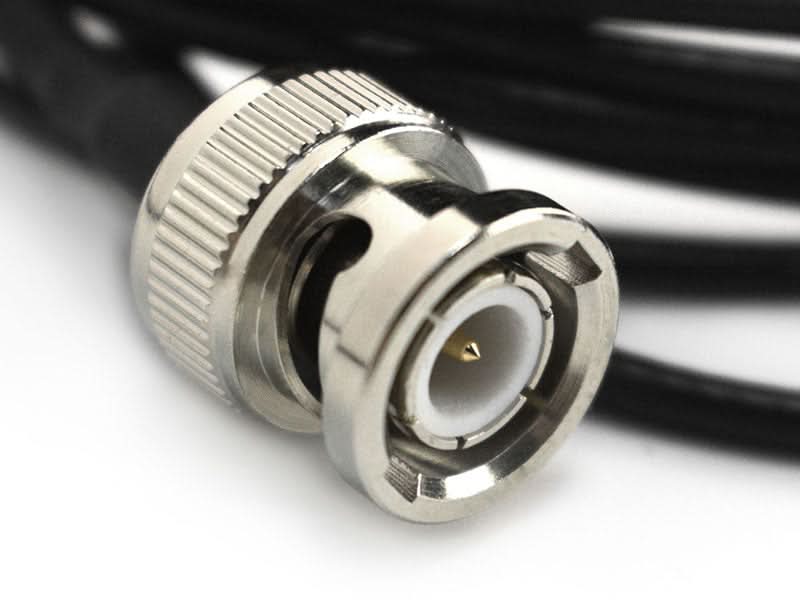

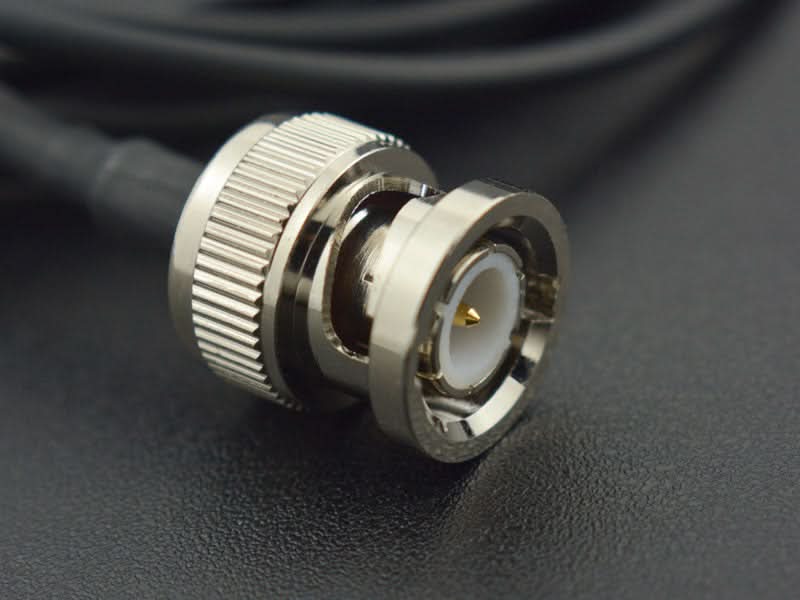

- Probe Connector: BNC

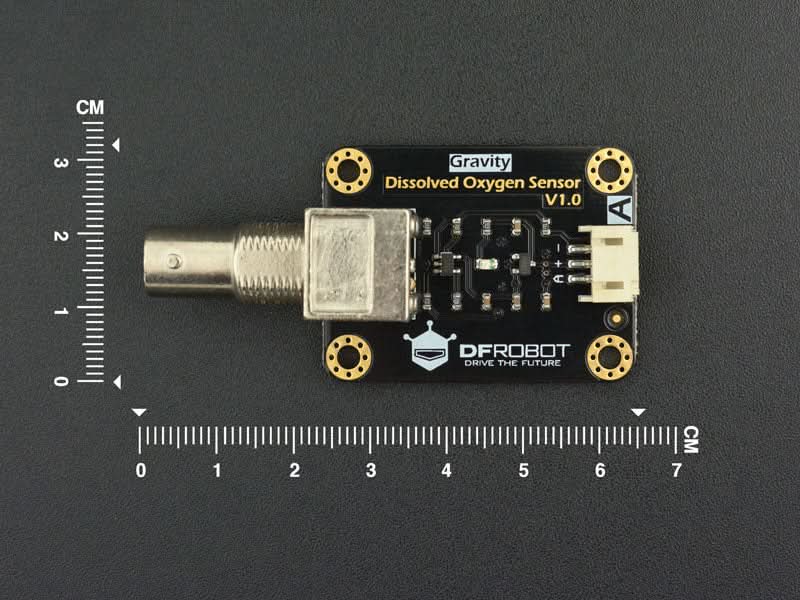

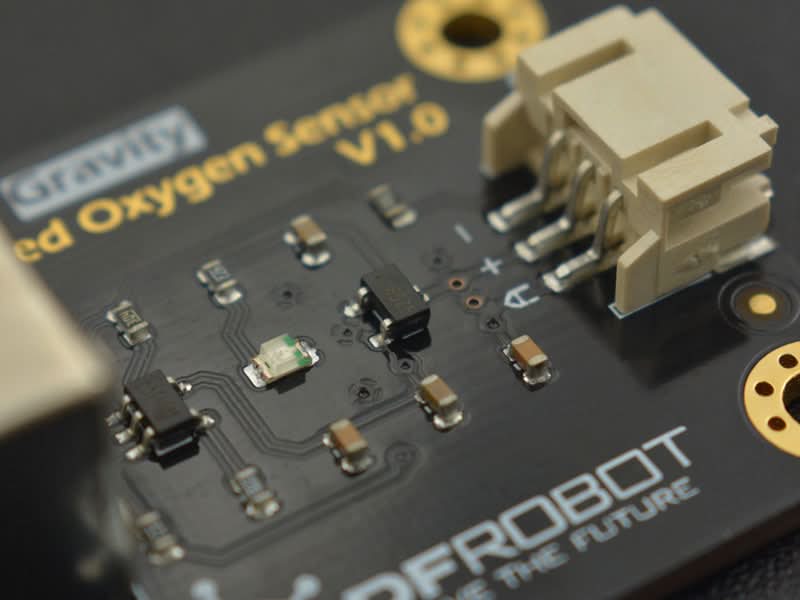

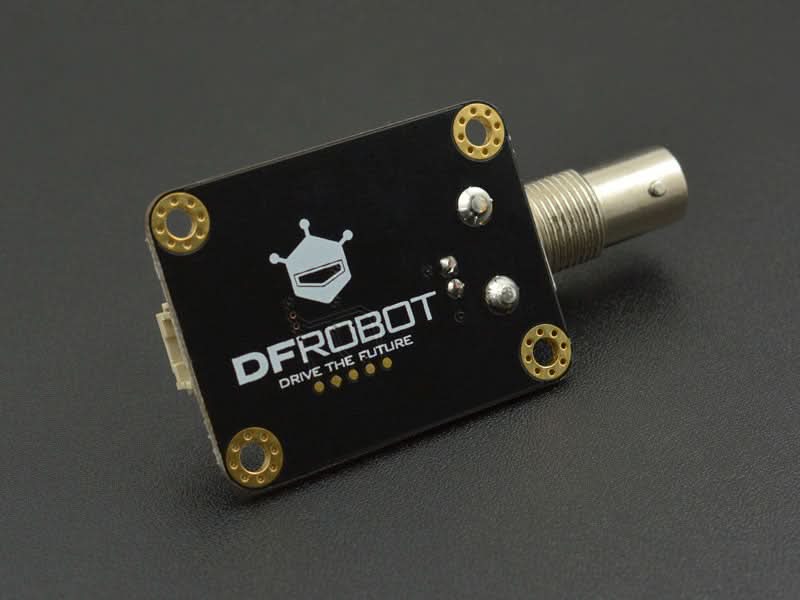

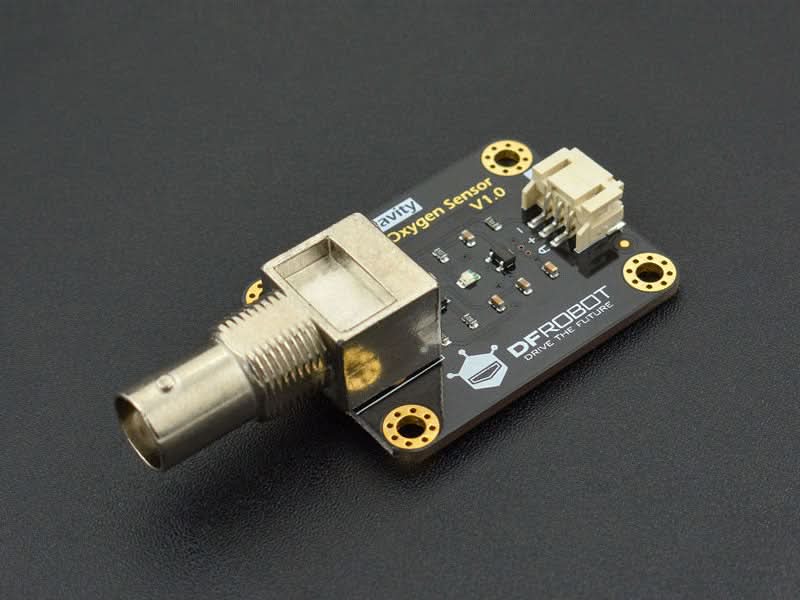

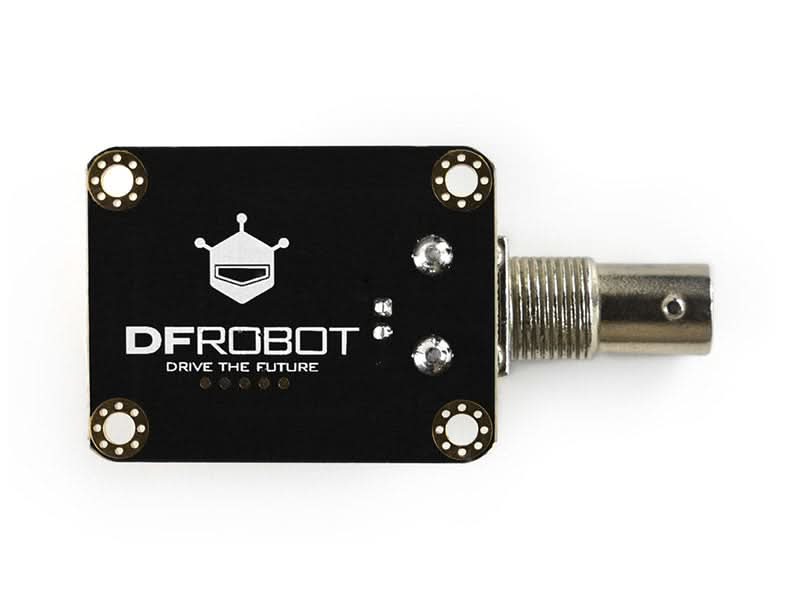

Signal Converter Board
- Operating Voltage: 3.3~5.5V
- Output Signal: 0~3.0V

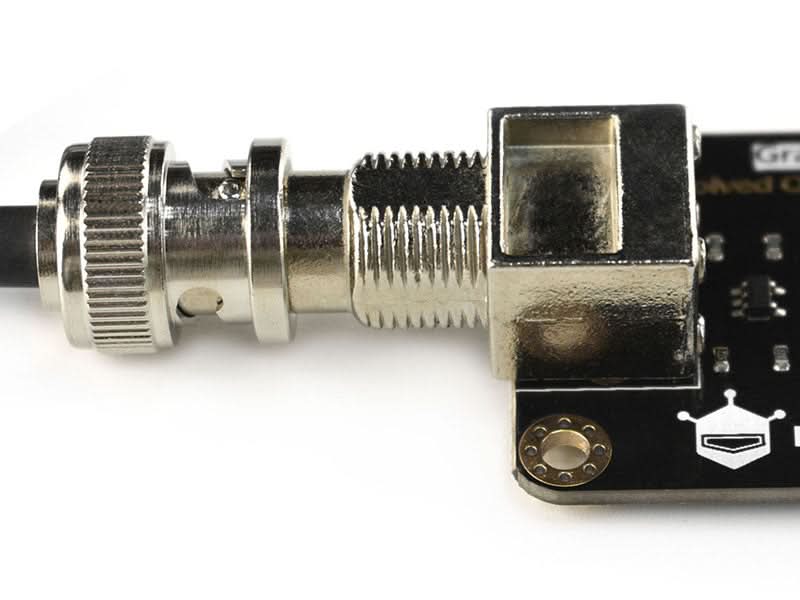

- Cable Connector: BNC
- Signal Connector: Gravity Analog Interface (PH2.0-3P)
- Dimension: 42mm * 32mm
DOCUMENTS

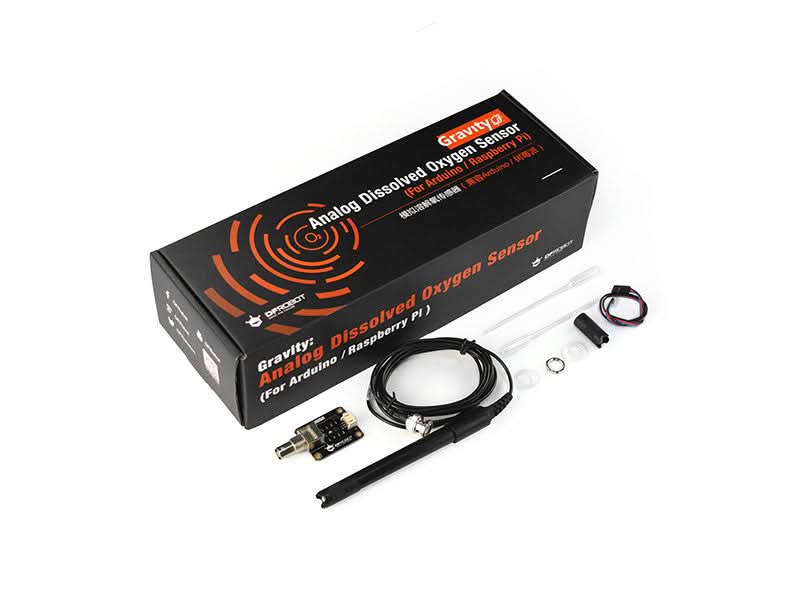

SHIPPING LIST
- 1x Galvanic Dissolved Oxygen Probe with Membrane Cap
- 1x Spare Membrane Cap
- 1x Signal Converter Board
- 1x Gravity Analog Sensor Cable
- 2x Waterproof Gasket
- 1x Screw Cap for BNC Connector
- 2x Plastic Dropper
