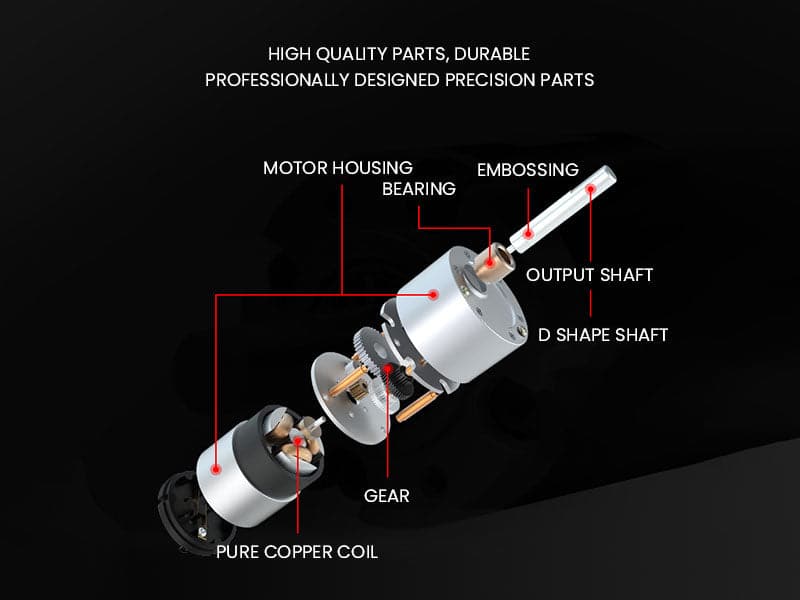

Motor DC 6V 12V Gearbox

Option | 6V 10RPM

$13.00
$13.00
Sold Out

Product Details
  • Variant: 6V 10RPM
  • SKU: MOT-BRU-001
  • In Stock: 18

Motor DC 6V 12V Gearbox

$13.00
$13.00
Sold Out

Option

6V 10RPM

DESCRIPTION

The first step in a robotics project is to get a motor spinning. Motors comes in different sizes and voltages, and drives at different speed depending on the gear reduction ratio. There is often a trade-off between speed and accuracy; So if you need accuracy go for a lower RPM if not you can opt for speed with a higher RPM.


TECHNICAL DETAILS

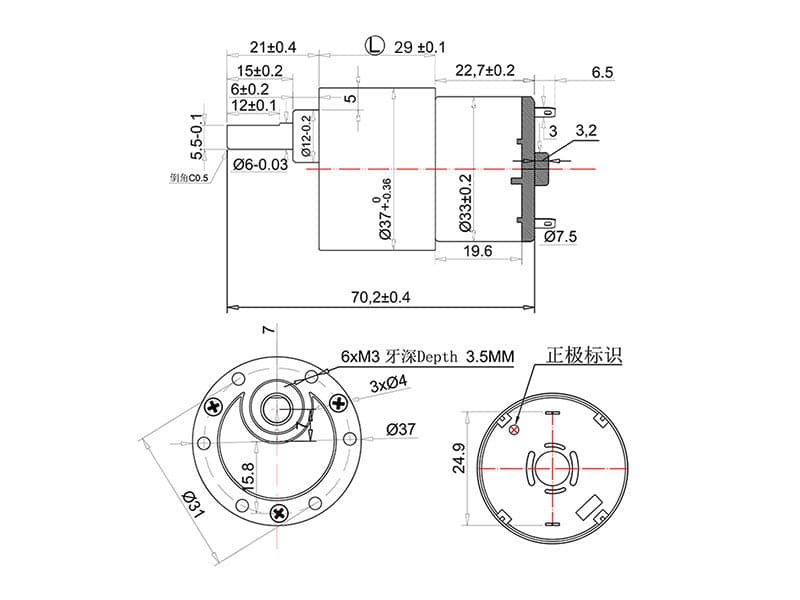

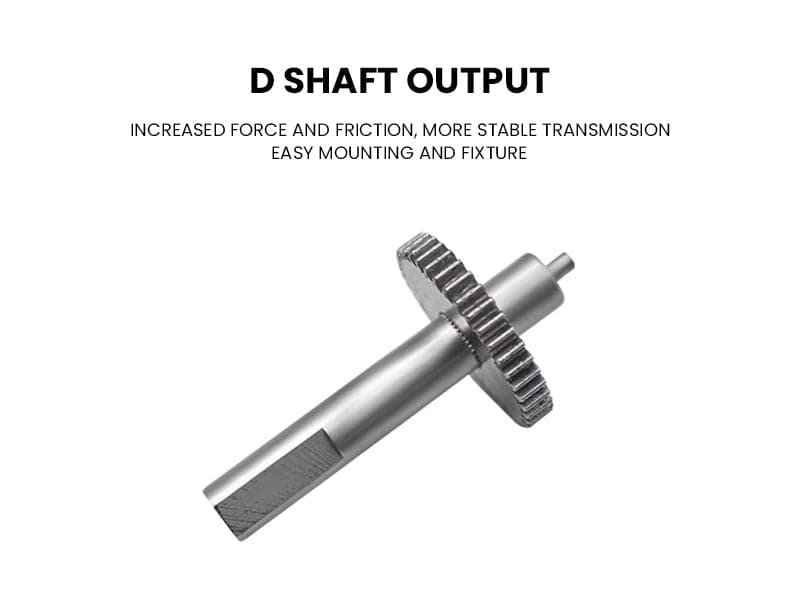

  • Output Shaft Diameter: 6mm


Motor DC 6V
  • Reduction Ratio: 810:1
  • No Load Operating Current: 0.2A
  • No Load RPM: 10 ±10%
  • Rated Load Operating Current: 0.6A
  • Rated Load RPM: 8 ±10%
  • Rated Load Torque: 12kg
  • Rated Load Power: 3.6W
  • Stall Torque: 48kg
  • Stall Current: 2.2A
  • Reduction Ratio: 270:1
  • No Load Operating Current: 0.2A
  • No Load RPM: 29 ±10%
  • Rated Load Operating Current: 0.6A
  • Rated Load RPM: 23 ±10%
  • Rated Load Torque: 4.2kg
  • Rated Load Power: 3.6W
  • Stall Torque: 19.4kg
  • Stall Current: 2.2A
  • Reduction Ratio: 131:1
  • No Load Operating Current: 0.2A
  • No Load RPM: 61 ±10%
  • Rated Load Operating Current: 0.6A
  • Rated Load RPM: 46 ±10%
  • Rated Load Torque: 2.3kg
  • Rated Load Power: 3.6W
  • Stall Torque: 9.2kg
  • Stall Current: 2.2A
  • Reduction Ratio: 56:1
  • No Load Operating Current: 0.2A
  • No Load RPM: 142 ±10%
  • Rated Load Operating Current: 0.6A
  • Rated Load RPM: 107 ±10%
  • Rated Load Torque: 1kg
  • Rated Load Power: 3.6W
  • Stall Torque: 4kg
  • Stall Current: 2.2A
  • Reduction Ratio: 18.8:1
  • No Load Operating Current: 0.3A
  • No Load RPM: 425 ±10%
  • Rated Load Operating Current: 0.6A
  • Rated Load RPM: 340 ±10%
  • Rated Load Torque: 0.4kg
  • Rated Load Power: 3.6W
  • Stall Torque: 1.6kg
  • Stall Current: 2.2A


Motor DC 12V
  • Reduction Ratio: 506:1
  • No Load Operating Current: 0.1A
  • No Load RPM: 12 ±10%
  • Rated Load Operating Current: 0.3A
  • Rated Load RPM: 9.4 ±10%
  • Rated Load Torque: 9.1kg
  • Rated Load Power: 3.6W
  • Stall Torque: 36.4kg
  • Stall Current: 1.2A
  • Reduction Ratio: 169:1
  • No Load Operating Current: 0.1A
  • No Load RPM: 35 ±10%
  • Rated Load Operating Current: 0.3A
  • Rated Load RPM: 28 ±10%
  • Rated Load Torque: 3.4kg
  • Rated Load Power: 3.6W
  • Stall Torque: 13.6kg
  • Stall Current: 1.2A
  • Reduction Ratio: 90:1
  • No Load Operating Current: 0.1A
  • No Load RPM: 66 ±10%
  • Rated Load Operating Current: 0.2A
  • Rated Load RPM: 52 ±10%
  • Rated Load Torque: 2kg
  • Rated Load Power: 3.6W
  • Stall Torque: 8kg
  • Stall Current: 1.2A
  • Reduction Ratio: 56:1
  • No Load Operating Current: 0.1A
  • No Load RPM: 107 ±10%
  • Rated Load Operating Current: 0.2A
  • Rated Load RPM: 85 ±10%
  • Rated Load Torque: 1.2kg
  • Rated Load Power: 3.6W
  • Stall Torque: 4.8kg
  • Stall Current: 1.2A
  • Reduction Ratio: 18.8:1
  • No Load Operating Current: 0.1A
  • No Load RPM: 319 ±10%
  • Rated Load Operating Current: 0.2A
  • Rated Load RPM: 255 ±10%
  • Rated Load Torque: 0.48kg
  • Rated Load Power: 3.6W
  • Stall Torque: 1.9kg
  • Stall Current: 1.2A


SHIPPING LIST

  • 1x Motor DC 6V 12V Gearbox
>
