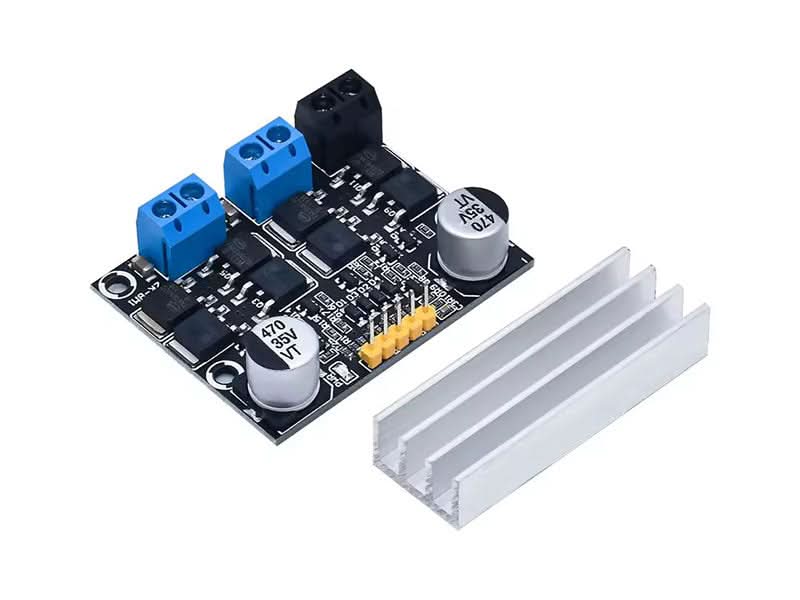

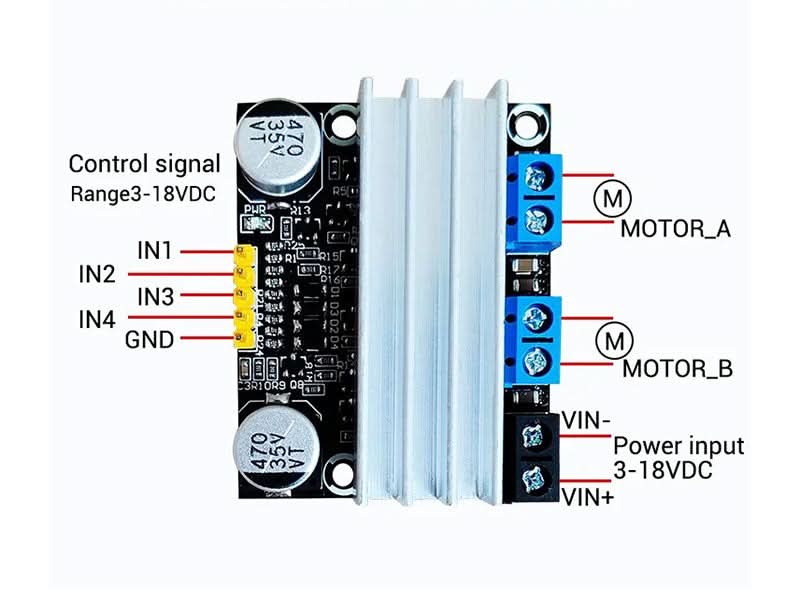

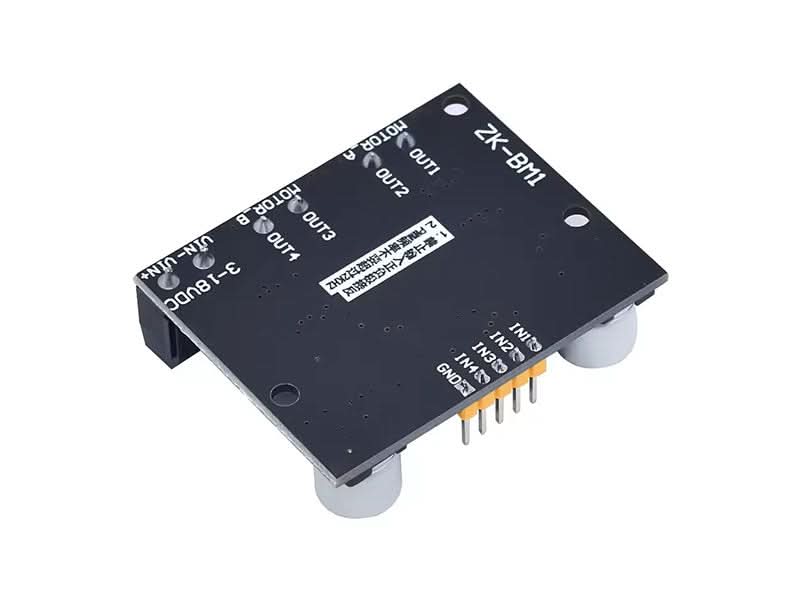

Motor Driver Dual H Bridge 10A

DESCRIPTION

The Dual H-Bridge 10A Motor Driver is a high-performance power module designed for precision control of brushed DC motors. Engineered for high-current applications, this driver utilizes a robust H-bridge circuit architecture to provide independent, bidirectional control of two motors or a single four-wire stepper motor.

At the heart of this module is a high-efficiency MOSFET-based H-bridge. Unlike traditional L298N drivers that suffer from high voltage drops and heat dissipation issues, this 10A driver employs low RDS(on) transistors. This ensures minimal energy loss as heat, allowing for a compact form factor without sacrificing power.

FEATURES

• Independent Dual Channel Control: Drive two DC motors simultaneously with separate speed (PWM) and direction (DIR) signals.
• Industrial-Grade Heat Dissipation: Equipped with integrated aluminum heat sinks to maintain stability under high-load conditions.
• Low Logic Threshold: Compatible with modern microcontrollers, including Arduino, ESP32, Raspberry Pi, and STM32.

APPLICATIONS

• Heavy-Duty Robotics: Perfect for 4WD robot platforms and combat robots.
• Automated Guided Vehicles (AGVs): High torque handling for warehouse automation.
• Electric Vehicles: Small-scale EV prototypes and powered ride-ons.
• Industrial Actuators: Precise linear actuator control for manufacturing.

TECHNICAL DETAILS

• Operating Voltage: 3V to 18V DC
• Logic Control Voltage: 3V to 18V DC
• Continuous Output Current: 10A per channel
• Peak Current: 15A (short duration)
• PWM Frequency: Up to 2kHz
• Dimensions: 49mm * 39mm * 14mm
• Weight: 28g

SHIPPING LIST

• 1x Motor Driver Dual H Bridge 10A
• 1x Heatsink
