DESCRIPTION

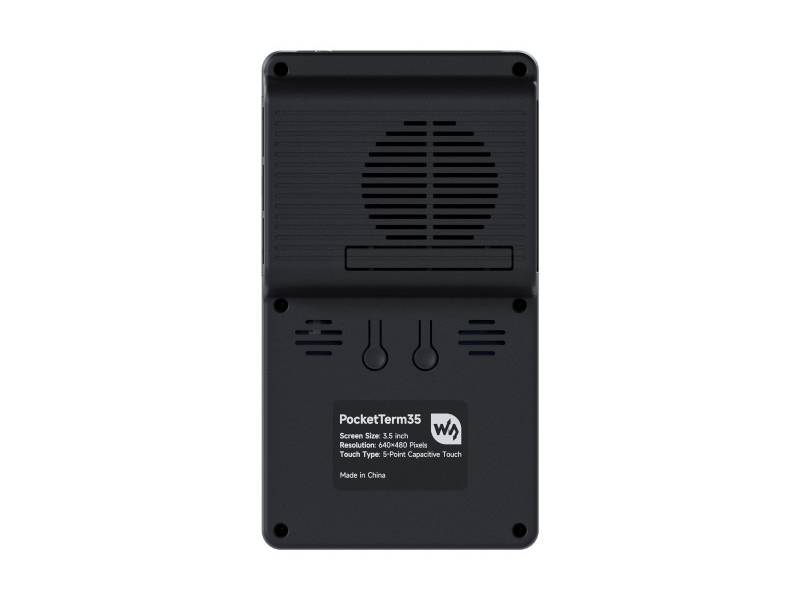

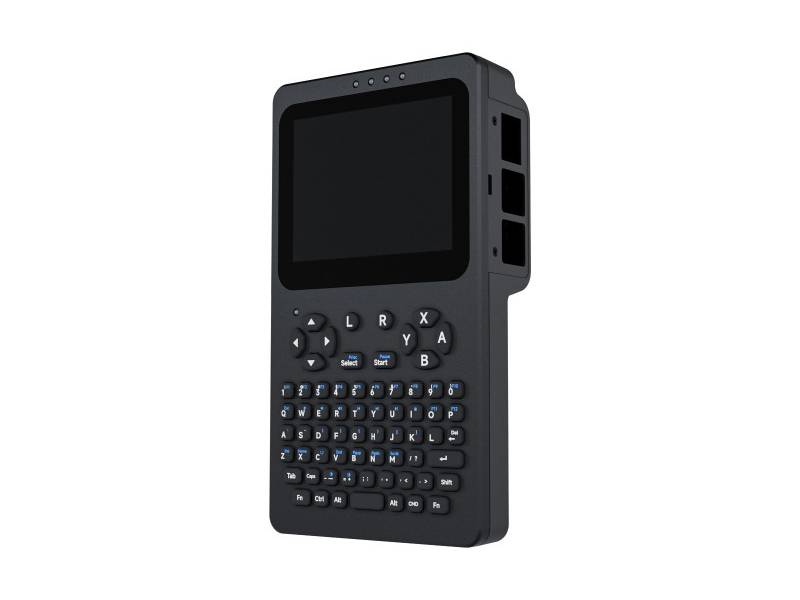

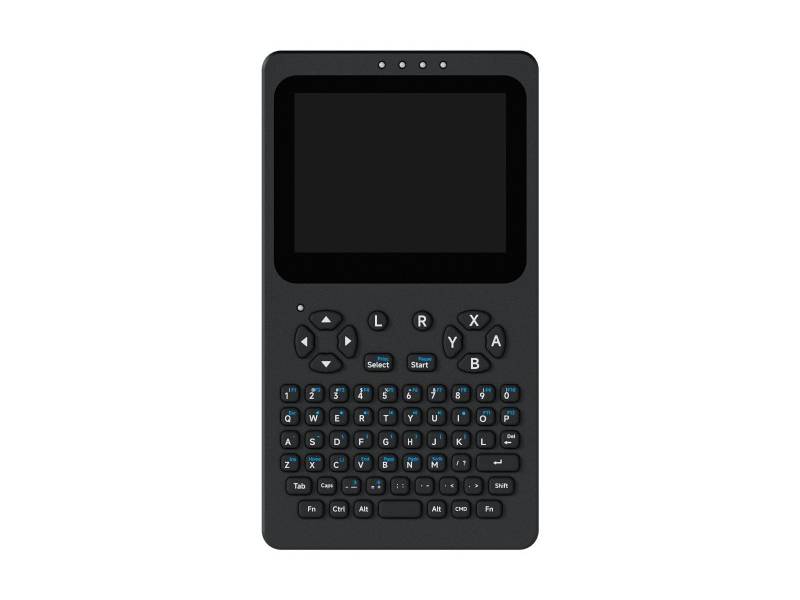

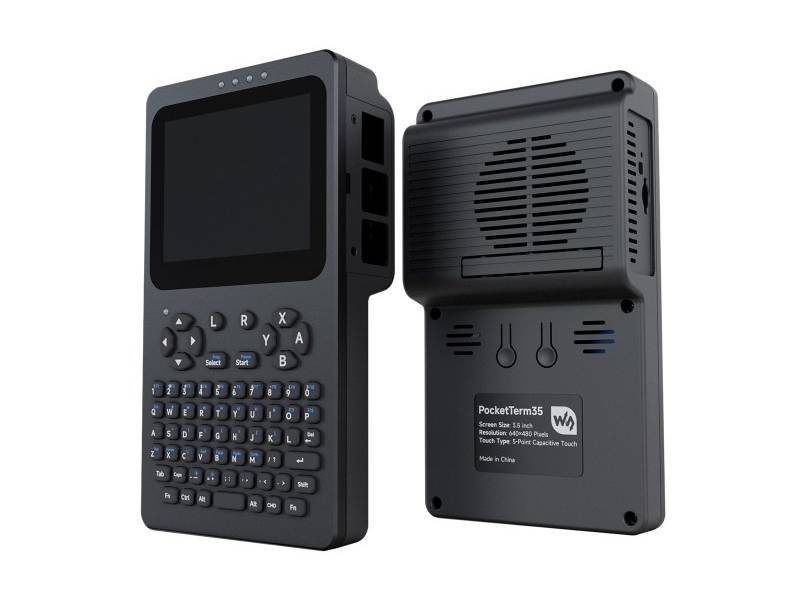

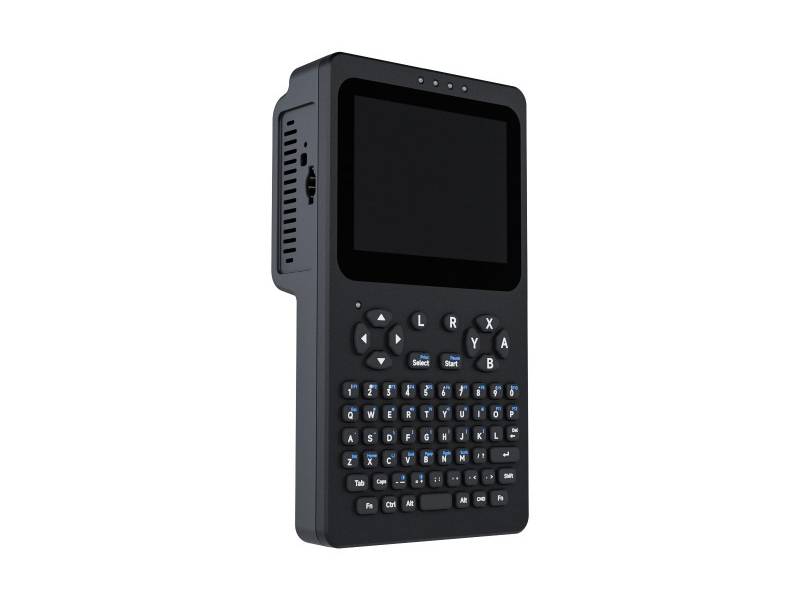

PocketTerm35 Portable Handheld Linux Terminal, Portable Raspberry Pi computer.
The PocketTerm35 is a handheld computer designed specifically for the Raspberry Pi 4B and Pi 5. It provides a complete Linux desktop experience, enabling you to enter commands, run development tools, or execute daily computing tasks directly in the terminal at any time. Features a compact 93.5 × 168.5 × 37 mm design, equipped with a 3.5inch 640 × 480 optical bonding touch display. Portable and lightweight, it is an ideal tool for geeks, developers, and electronics enthusiasts.
TOUCH DISPLAY
Suitable for terminal operations, command-line input, and graphical interface browsing
CONVENIENT KEYBOARD INPUT
A 67 keys standard-layout silicone keyboard, suitable for code entry, executing commands, and editing programs
BUILT-IN UPS POWER MANAGEMENT SYSTEM
Supports seamless switching between Batt and external power, enhancing system reliability
GAME SUPPORT
Supports handheld gaming, compatible with the RetroPie system
EXTERNAL INTERFACE INTRODUCTION
INTERNAL INTERFACE & PIN DEFINITION
OUTLINE DIMENSIONS
TECHNICAL DETAILS
- Compatible board Supports Raspberry Pi 4B / 5
- MCU: Built-in RP2040 MCU for controlling functions such as the keyboard, brightness, and volume
- Display: 3.5inch 640 × 480 IPS display, supports HDMI interface
- Touchscreen: 5-point capacitive touch, optical bonding, G + G toughened glass panel, 6H hardness, I2C header
- Audio: Built-in 8Ω 2W speaker, 4PIN PH1.25 header, supports 3.5mm audio output
- Keyboard: 67 keys QWERTY silicone keyboard
- Power: Supports external USB-C charging port; Built-in 2PIN PH2.0 Batt header, Lithium Batt; UPS power management supports charging and using simultaneously
- Power Control: Short press: turn on power; Double click: turn off power
- Case material: CNC-machined aluminum front cover; PC + ABS plastic back cover
DOCUMENTS

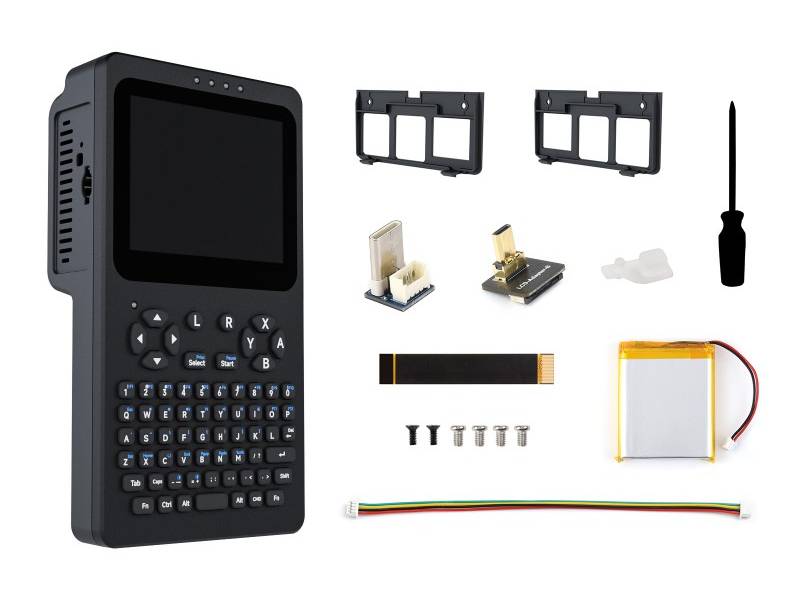

SHIPPING LIST
- 1x PocketTerm35 host
- 1x Pi 4 mounting plate
- 1x Pi 5 mounting plate
- 1x Micro HDMI adapter
- 1x Type-C male port to 4PIN PH1.25 female adapter
- 1x 1.27H 4PIN dual plugs cable (opposite) 15cm
- 1x HDMI cable 60mm
- 1x 3.7V 5000mAh Lithium Batt
- 1x Screws pack
- 1x Screwdriver
- 1x Silicone keycap
- 1x Packaging box
