DESCRIPTION

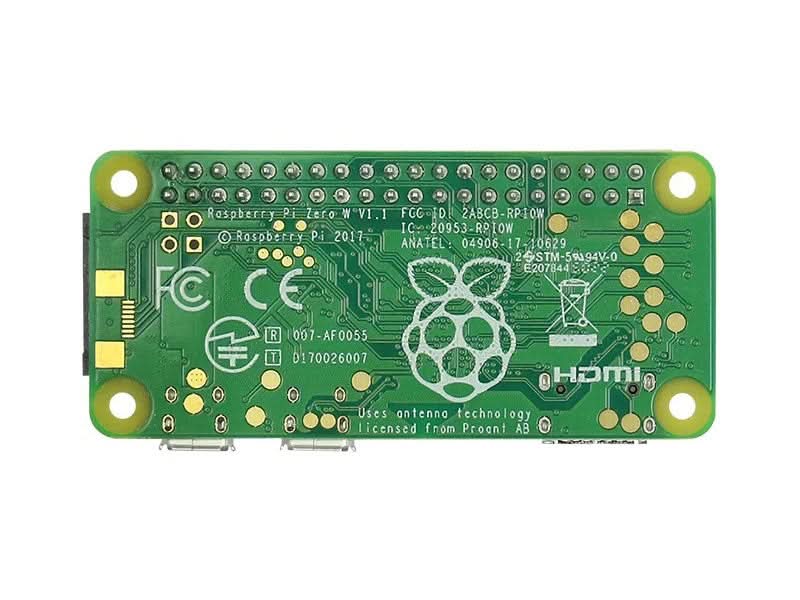

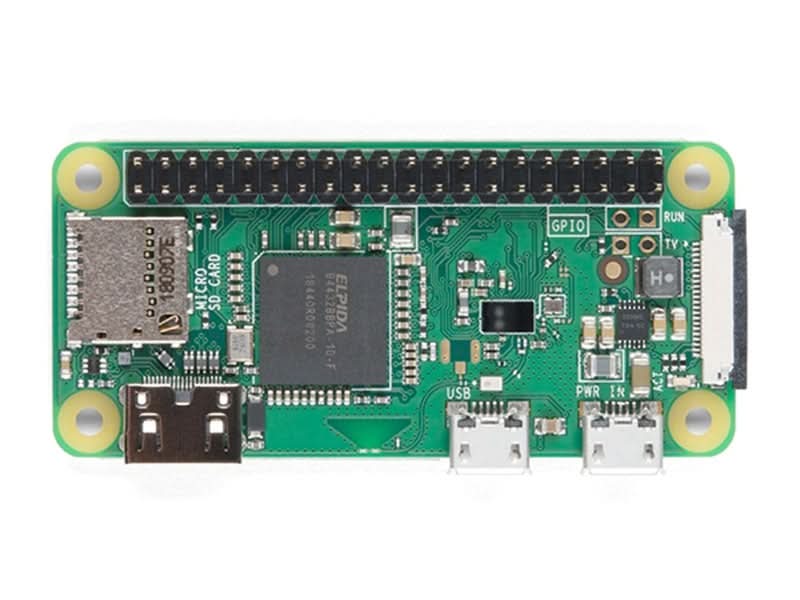

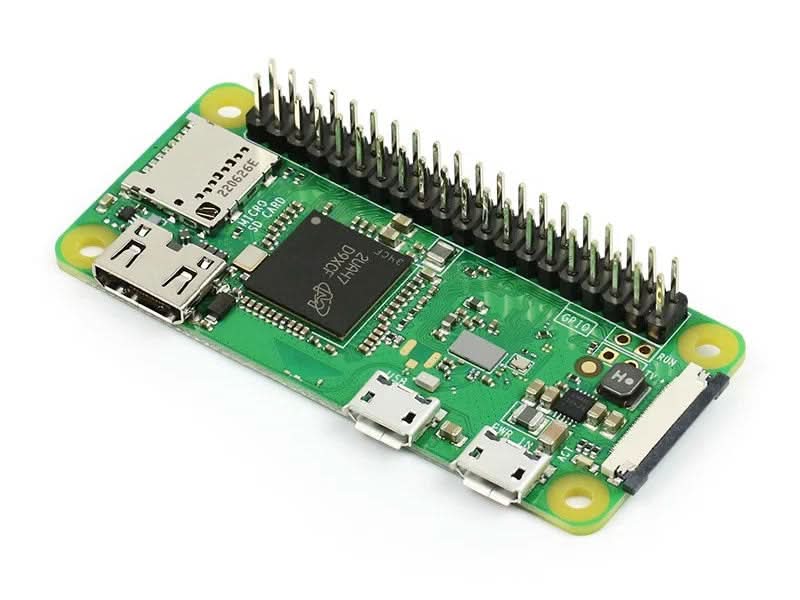

The Raspberry Pi Zero WH is the most accessible entry point into single-board computing, purpose-built for makers, educators, and IoT developers in Singapore and across Southeast Asia. Combining the ultra-compact footprint of the Zero form factor with a factory-soldered 40-pin GPIO header and onboard wireless connectivity, the Zero WH eliminates the need for manual soldering — making it ready to prototype straight out of the box.
The pre-soldered header is the defining advantage of the WH over the standard Zero W — it's a direct drop-in solution for GPIO-based HATs, sensors, and breakout boards without any additional setup. Its low power consumption makes it well-suited for battery-powered and always-on IoT deployments common in smart home, industrial monitoring, and educational lab environments.
Pair it with the official Raspberry Pi Camera Module, an Adafruit FeatherWing, or any standard 40-pin HAT for rapid prototyping. Widely supported by Singapore's maker community and stocked by local distributors, spare parts, accessories, and community support are readily available.
** Note: Please note that Pi Zero only lights up when micro SD card is inserted.
APPLICATIONS
- Wearables
- Retro gaming consoles
- Networked sensors
- Home automation nodes
- Portable media players
- Classroom STEM kits
- Low-cost Linux learning environments
TECHNICAL DETAILS
- Processor: 1GHz single-core ARM Cortex-A7 (BCM2835)
- RAM: 512MB LPDDR2
- Wireless: 802.11 b/g/n Wi-Fi + Bluetooth 4.1 (Classic & LE)
- GPIO: 40-pin pre-soldered header — HAT-compatible
- Storage: MicroSD card slot
- USB: 1x Micro USB OTG, 1x Micro USB power
- Display: Mini HDMI output (up to 1080p)
- Camera: CSI-2 camera connector
- Dimensions: 65mm x 30mm x 5mm
- Power Draw: ~160mA typical
- OS Support: Raspberry Pi OS, DietPi, and other ARMv6-compatible Linux distributions
