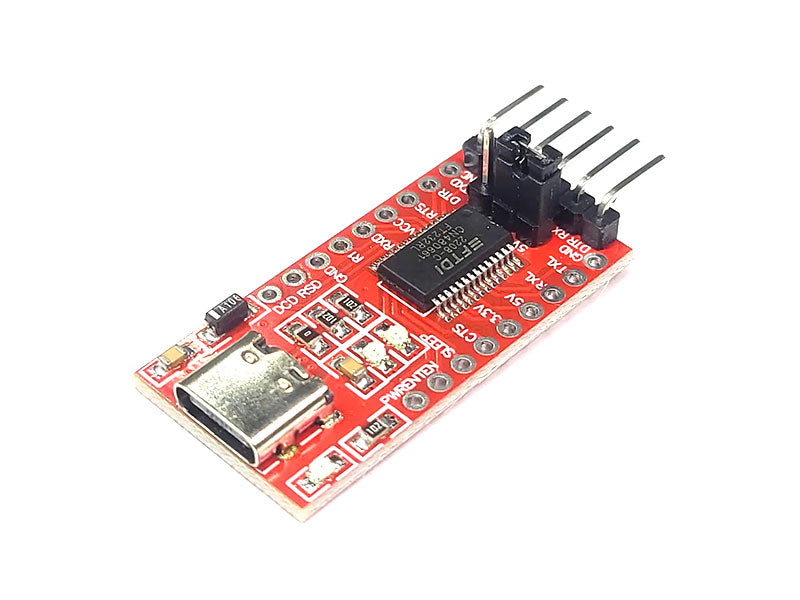

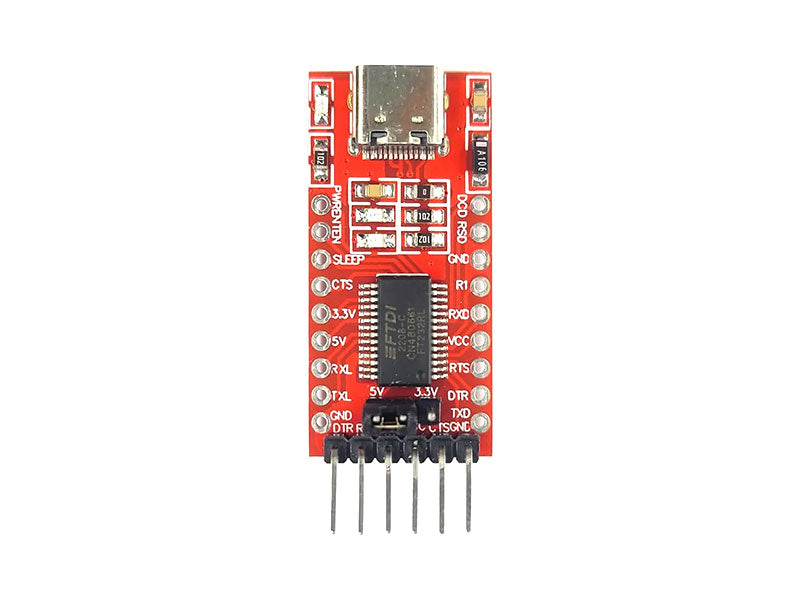

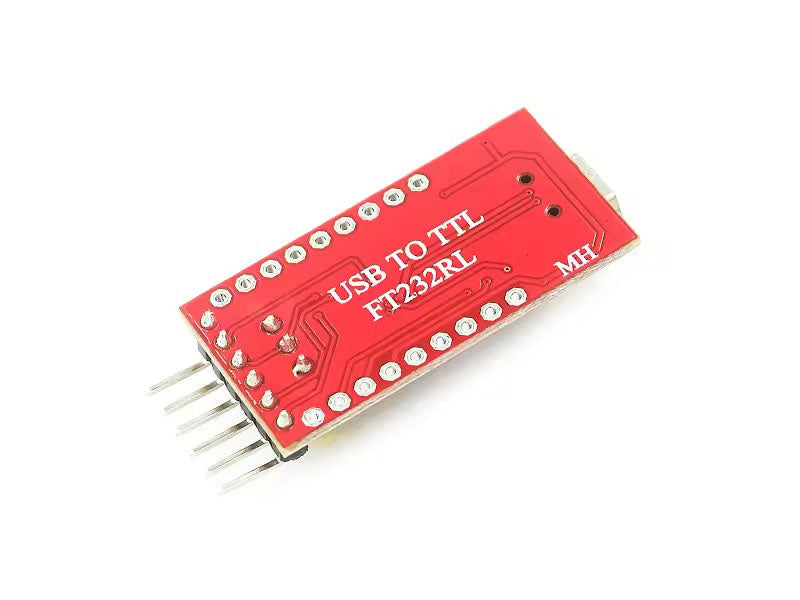

USB-TTL FT232RL Converter Type-C

DESCRIPTION

The USB-TTL FT232RL Converter with Type-C interface is a professional-grade bridge between USB and serial UART interfaces. Built around the industry-standard FTDI FT232RL chipset, this module provides a reliable, plug-and-play solution for flashing microcontrollers, debugging embedded systems, and establishing serial communication with hardware like Arduino, ESP8266, and Raspberry Pi.

CORE FEATURES & BENEFITS

• Modern Type-C Connectivity: Eliminates the fragility and orientation issues of older Micro-USB or Mini-USB ports. Compatible with modern cables and high-speed data environments.
• Dual-Voltage Logic Support: The onboard jumper allows you to toggle between 3.3V and 5V logic levels, making it versatile for both legacy 5V AVR systems and modern 3.3V ARM/ESP modules.
• Onboard Status LEDs: Features integrated TXD and RXD indicators that provide real-time visual feedback on data transmission, simplifying the debugging process.
• Highly Stable FTDI Drivers: Unlike cheaper alternatives (like the CH340), the FT232RL is renowned for its driver stability across Windows, macOS, and Linux.
• Hardware Handshaking: Supports RTS, CTS, DTR, and other flow control signals, which is essential for specialized industrial equipment and high-speed data logging.

APPLICATIONS

• Firmware Programming: Flashing Pro Mini, ESP-01, or custom PCB designs.
• Serial Debugging: Monitoring "Print" statements from microcontrollers during development.
• Router & Modem Repair: Accessing the serial console for unbricking networking gear.
• Industrial Communication: Bridging legacy RS-232/RS-485 equipment to modern laptops.

TECHNICAL DETAILS

• Chipset: FTDI FT232RL
• Input: USB Type-C
• Output: 6-Pin Header (DTR, RXD, TXD, VCC, CTS, GND)
• Logic Voltage: Switchable 3.3V and 5V (via Jumper)
• Baud Rates: 300 bps to 3 Mbps
• Protection: Built-in self-restoring fuse (500mA)

SHIPPING LIST

• 1x USB-TTL FT232RL Converter
