DESCRIPTION

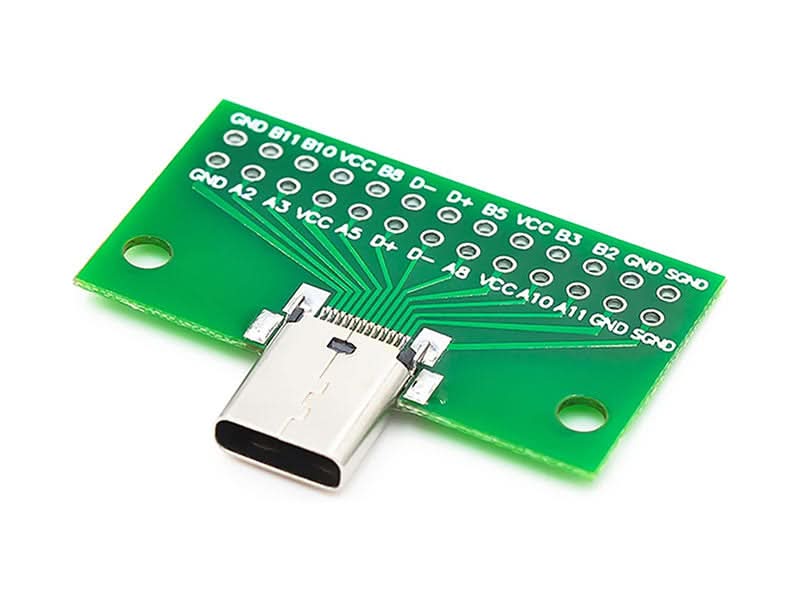

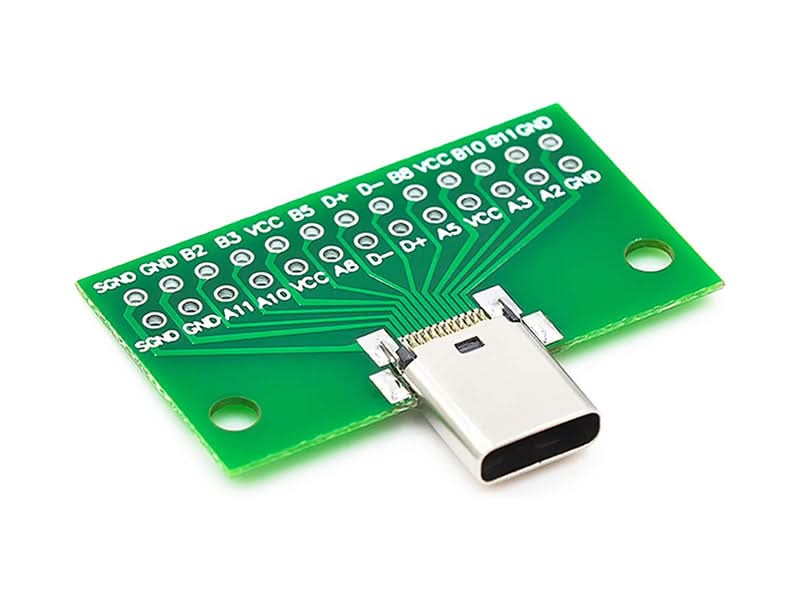

The USB Type-C 24 Pin Breakout Board is an essential tool for engineers, hobbyists, and electronics developers who need direct access to every signal line on the USB Type-C connector. Designed for prototyping, circuit analysis, and custom interface development, this breakout board exposes all 24 pins of the USB Type-C specification onto clearly labelled through-hole pads — giving you full visibility and control over power delivery, data lines, configuration channels, and sideband signals.
Whether you are designing a USB Power Delivery (USB-PD) circuit, developing a USB 3.1/3.2 high-speed data interface, testing an Alternate Mode implementation (such as DisplayPort or Thunderbolt), or simply debugging a Type-C device, this board eliminates the challenge of working with the ultra-compact SMD connector directly. The breakout pitch is compatible with standard 2.54mm breadboards and perfboards, making it straightforward to integrate into any development setup.

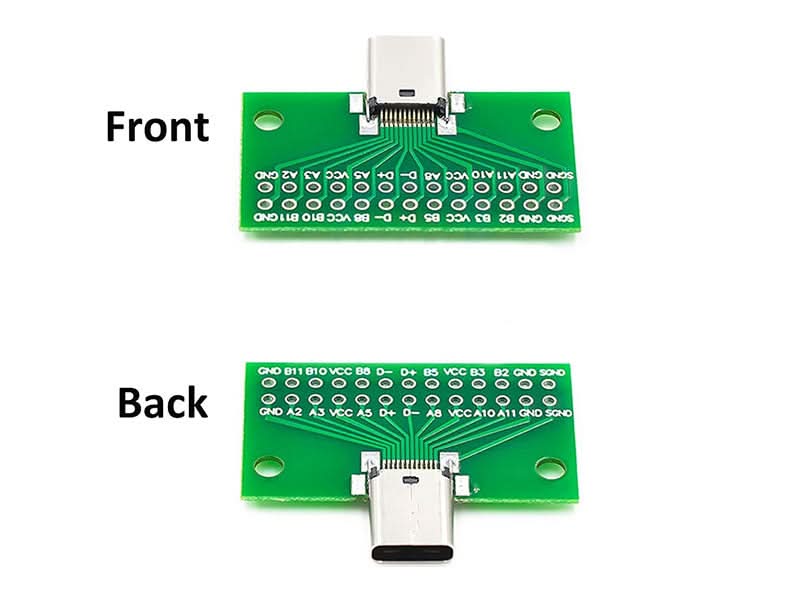

Built with a high-quality FR4 PCB substrate and gold-plated (ENIG) pad finish, the board ensures reliable signal integrity even when working with high-frequency USB 3.x SuperSpeed lines. Each pin is clearly silk-screened with its official USB-IF designation, reducing wiring errors during prototyping.
Commonly used in Singapore's maker community, university electronics labs, IoT product development, and professional R&D environments, this board is a compact yet powerful companion for any USB Type-C project.
APPLICATIONS
- USB-PD charger and power supply development
- USB 3.x high-speed data interface prototyping
- Alternate Mode (DisplayPort, HDMI, Thunderbolt) development
- Cable continuity and pin mapping testing
- Microcontroller and SBC integration projects
TECHNICAL DETAILS
SHIPPING LIST
- 1x USB Type-C 24 Pin Breakout Board
