DESCRIPTION
Achieve professional-grade, waterproof electrical connections with the Waterproof Solder Seal Heat Shrink Kit — a 50-piece set engineered for reliable wire splicing in demanding environments. Each connector combines a low-temperature solder ring with a dual-wall polyolefin heat shrink tube and hot-melt adhesive lining, creating a moisture-proof, corrosion-resistant seal in a single step — no soldering iron required.
Ideal for automotive wiring, marine installations, outdoor lighting, and home electrical repairs, these solder seal connectors are designed to withstand Singapore's humid tropical climate, heavy rain exposure, and the corrosive effects of coastal air. Whether you're a professional auto electrician, marine technician, or a DIY enthusiast tackling home projects, this kit delivers fast, secure connections that outperform traditional crimp connectors and tape splices.
Simply insert wires, apply heat with a heat gun or lighter, and the solder melts and flows while the tube shrinks tightly around the joint — bonding, insulating, and waterproofing in under 30 seconds. The result is a joint that meets marine-grade standards, resisting water ingress, vibration, and UV degradation.
The 50-piece kit covers a range of wire gauges and is colour-coded for quick, error-free selection on the job. Compact and portable, the full kit fits easily in a toolbox, making it a must-have for workshops, vehicles, and job sites.
TECHNICAL DETAILS

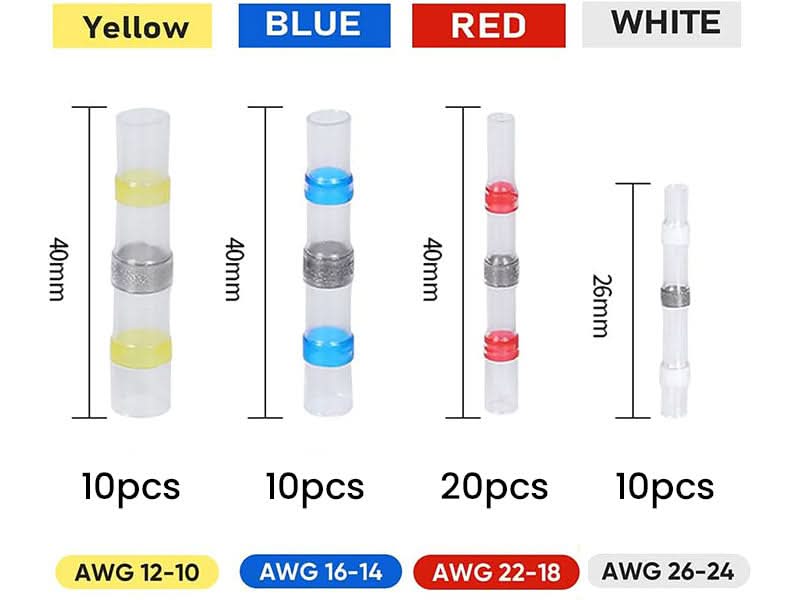

- Wire Gauge Compatibility: Red — 0.5–1.5 mm² (AWG 22–18), Blue — 1.5–2.5 mm² (AWG 16–14), Yellow — 2.5–6.0 mm² (AWG 12–10)
- Solder Material: Tin-based low-temperature solder ring (melting point approx. 138°C)
- Heat Shrink Tube Material: Dual-wall polyolefin
- Adhesive Lining: Hot-melt adhesive (activates during heat application)
- Shrink Ratio: 3:1
- Waterproof Rating: IP67-equivalent seal after shrinking
- Activation Temperature: Min. 120°C (compatible with heat gun or open flame)
- Shrink Temperature: Approx. 90°C
- Operating Temperature Range: -55°C to +125°C
SHIPPING LIST
- 10x Yellow AWG 12-10
- 10x Blue AWG 16-14
- 20x Red AWG 22-18
- 10x White AWG 26-24
