XIAO ESP32-S3 Plus
XIAO ESP32-S3 Plus
XIAO ESP32-S3 Plus
XIAO ESP32-S3 Plus
XIAO ESP32-S3 Plus
XIAO ESP32-S3 Plus
XIAO ESP32-S3 Plus

XIAO ESP32-S3 Plus

Only 3 left!
$28.00
$28.00
Sold Out
Product Details
  • SKU: 102010671
  • In Stock: 3

DESCRIPTION

Inspired by the unique SMD pins design of the RICK TNY, we're now introducing the Seeed Studio XIAO Plus boards (available in XIAO nRF52840 Plus, XIAO nRF52840 Sense Plus, and XIAO ESP32-S3 Plus) to include an updated design of more castellations and a new pad layout on the back.

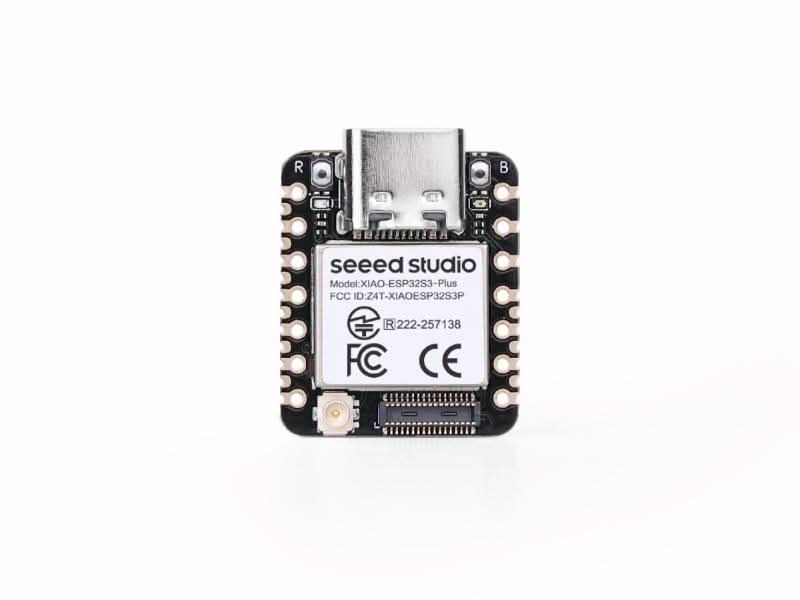

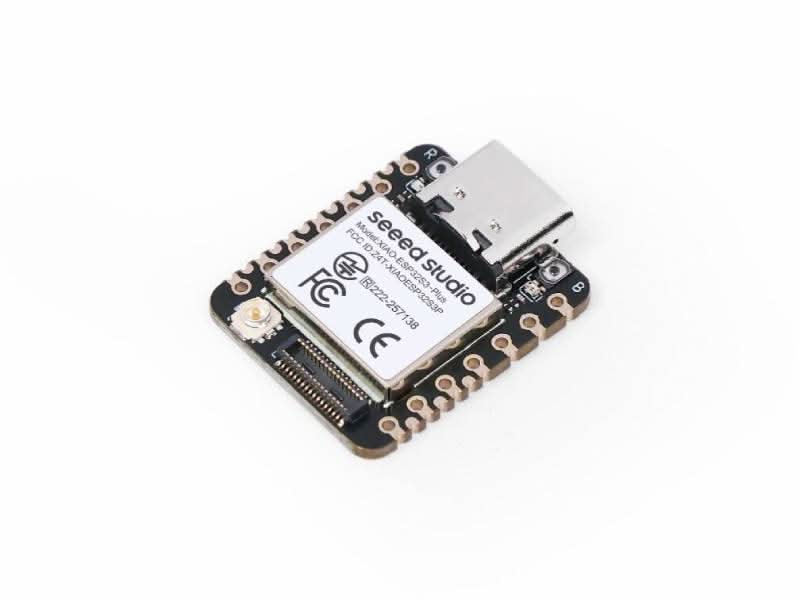

Seeed Studio XIAO ESP32-S3 Plus, powered by ESP32-S3's 240MHz Xtensa 32-bit LX7 dual-core processor, brings more SMD pins to the tiny versatile XIAO ESP32-S3. While maintaining all the powerful features including WiFi and BLE 5.0 wireless connectivities, 2.4GHz Rod antenna, and ultra-low power consumption of 14μA in deep sleep mode with lithium battery charging management, the Plus variant features redesigned castellations and pad layout on the back, offering 9 additional GPIOs specifically for advanced Bluetooth projects requiring expanded I/Os via SMD board-to-board soldering. It's ideal for advanced IoT projects, Smart Homes, and professional wireless devices requiring extra I/O connectivity. XIAO ESP32-S3 Plus additionally features an upgraded 16MB Flash memory for advanced applications.


FEATURES

  • High-Performance MCU: Dual-core ESP32-S3 at 240MHz, Arduino / MicroPython / ESP-IDF compatible
  • Advanced Wireless: 2.4GHz WiFi + BLE 5.0, 100m+ range with U.FL antenna support
  • Efficient Power Management: Four power modes with 14μA deep sleep, integrated Li-ion charging
  • Expanded 20 GPIOs: 9 extra 1.27mm pitch SMD castellation pins beyond standard XIAO nRF52840
  • Universal Compatibility: Standard backside layout (with aligned battery pads, and debugger pads) for more to-be-released XIAO expansion boards
  • Classic XIAO Form Factor: 21 x 17.8mm design with 2.54mm pin headers, single-sided mounting for wearables and space-constrained projects
  • XIAO Accessory Add-ons Compatibility: Natively compatible with all the XIAO accessory add-ons of expansion, connectivity modules (LoRa, CAN_Bus, RS-485), sensors (2-Mic Array, Vision AI, mmWave Motion, Environmental sensing), and actuators (ePaper display, LED Matrix, relay and more)


HARDWARE OVERVIEW

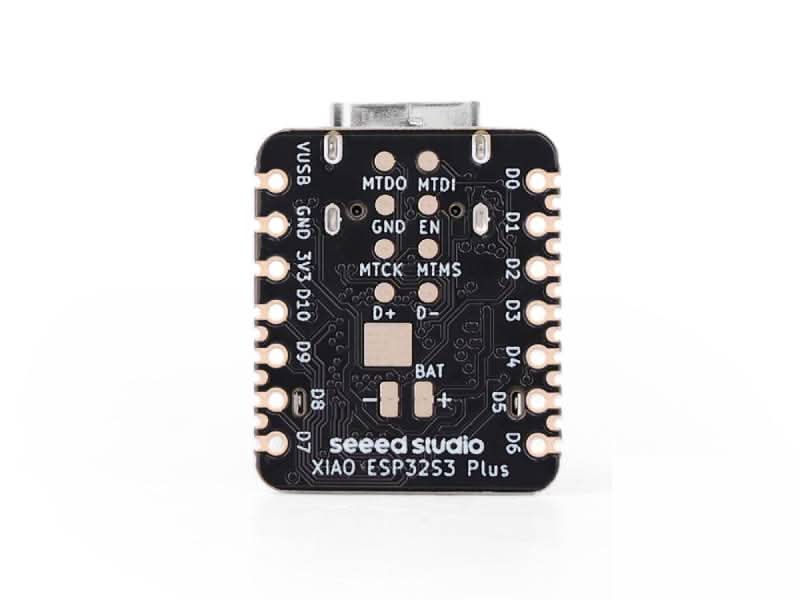

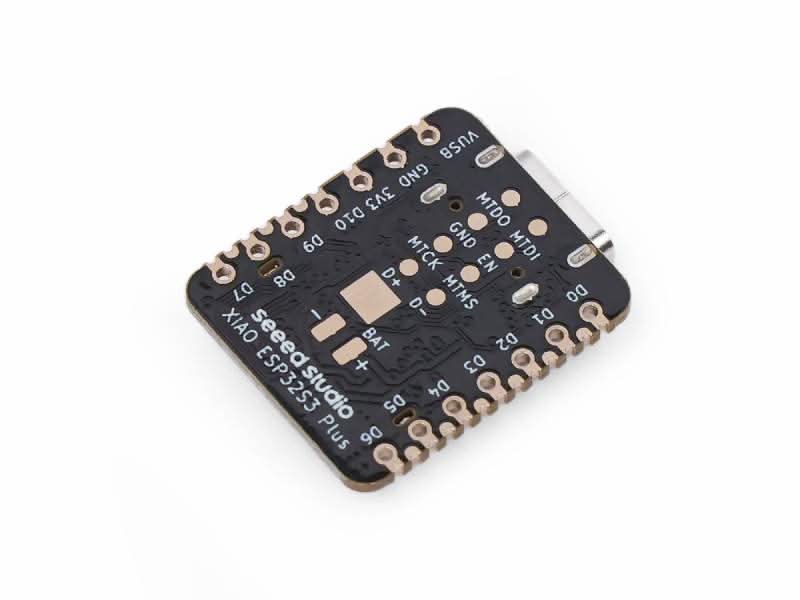

PINOUT


APPLICATIONS

  • Internet of Things
  • Wearable devices
  • Smart Homes
  • Robotics
  • Health monitoring
  • Education
  • ESP-Now Communication
  • Low-Power(LP) networking


TECHNICAL DETAILS

  • Chipest: ESP32-S3R8 SoC
  • Processor: Xtensa LX7 dual-core, 32-bit processor running up to 240 MHz
  • Wireless: Complete 2.4GHz WiFi subsystem, Bluetooth Low Energy 5.0 / Bluetooth Mesh
  • On-Chip Memory: 8MB PSRAM & 16MB Flash
  • Interface: 2x UART, 1x IIC, 1x IIS, 2x SPI, 18x GPIO (PWM), 9x ADC, 1x User LED, 1x Charge LED, 1x B2B Connector, 1x Reset button, 1x Boot button

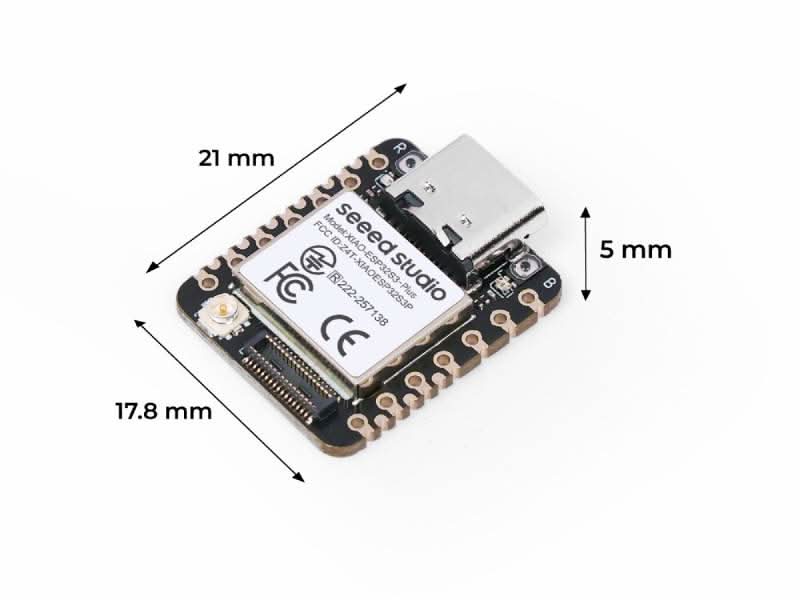

  • Dimensions: 21 x 17.8mm
  • Power (Typ.): Input voltage (Type-C): 5V, Input voltage (BAT): 3.7V
  • Circuit Operating Voltage: Type-C: 5V@28mA, BAT: 3.8V@35mA
  • Charging Current: 100mA(Fast) / 0.9mA(Trickle)
  • Low Power Consumption Mode (Typ.): Modem-sleep Mode: 3.8V/31.6 mA; Light-sleep Mode: 3.8V/2.45 mA; Deep Sleep Mode: 3.8V/33.51 μA
  • WiFi Enabled Power Consumption (Typ. ): Active Mode: 81 mA
  • BLE Enabled Power Consumption (Typ.): Active Mode: 101 mA
  • Working Temperature: -40°C ~ 65°C


SHIPPING LIST

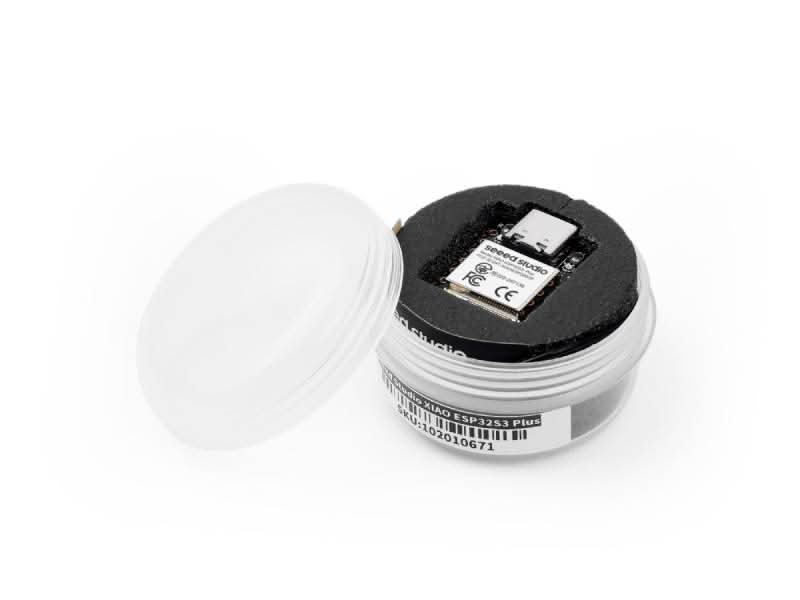

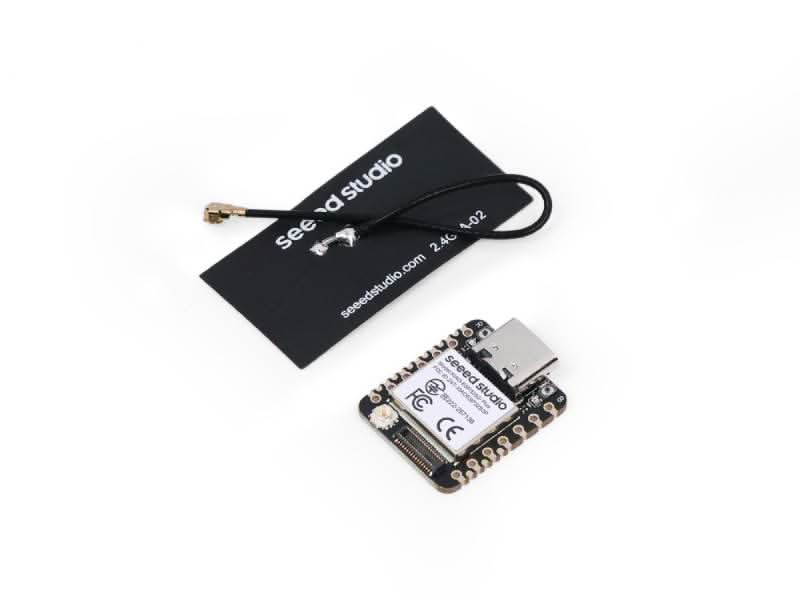

  • 1x Seeed Studio XIAO ESP32-S3 Plus
  • 1x Antenna
  • 2x 7 Pin Header
